Scanvogn – Shower & Toilet Trailer 570 (5.7 x 2.28 x 2.9m)

AL-KO CHASSIS – Using German AL-KO parts on all standardised chassis to ensure you one of the best trailer systems on the market. Rubber torsion-independent suspensions make a smoother ride with maximum protection of goods being carried.
VISABILITY – All external vehicle lights are high and low, high-quality LED sealed for high visibility whilst travelling.
BEST PROTECTION – Galvanising is carried out after the chassis has been mechanically machined so that all edges and bolt holes are also protected.
FULLY MOLDED CURVED ROOF – Molded roof with a smooth curvature to optimise strength and direct water/snow and dirt away from the centre of the roof to the gutter -front and rear.
GUTTER SYSTEM – Directional gutters along the sides to gutter at each gable to direct water and dirt away from users, doors and windows.
DURABLE PANELS – Using UV-stabilised bright white fibreglass which contains a high number of fibres for best strength and durability. Totally weatherproofed and the perfect base for vinyl wrapping.
EU – CERTIFIED – All our standard windows are gas-filled double glazing for extreme thermal efficiency, and screen boxes and lights are EC certified. Our wagons can therefore be driven legally throughout the EU and Au, in extreme heat and cold.
STRONG WALLS – All external walls are seam cut and placed so that the angles close tightly around the floor for maximum strength and tightness.
ENERGY-FRIENDLY LIGHT – Using daylight white LED light strips in all rooms, which gives you a comfortable white and energy-friendly light with a modern look.
SPECIAL COMPONENTS – We produce several of our own sub-components ourselves, so we can offer you higher quality at a reasonable price.
GUARANTEED SPARE PARTS – We have a large spare parts warehouse, where most parts can be shipped from day to day.
COMPACT LAMINATE – All our table tops are high-density compact laminate which will not rot or create mould. This makes them resistant to water and humidity & bacteria. Excellent for testing or catering rooms.
TOUCH-FREE FITTINGS – Option to choose touch-free fittings or toilet flush. (Specific to Covid-19 compliance) With durable/fully washable materials, so you spend as little time on cleaning and maintenance as possible.
SPACIOUS – With ceiling heights of 2100mm and bigger and widths from up to 2380mm, we pride ourselves on having the most spacious models.
TOWABILITY – Our trailer systems use lightweight low-tare strong chassis, combined with very lightweight panels, we know we have the lightest, most efficient mobile room system available. Overrun mechanical all-wheel drum braked, with breakaway safety cables and independent handbrake – there is no adjustment needed by the user.
ROI – All in all, with great resale values, this gives you the best business investment, easiest to manage, most sustainable fuel-saving mobile trailer system, on the market.

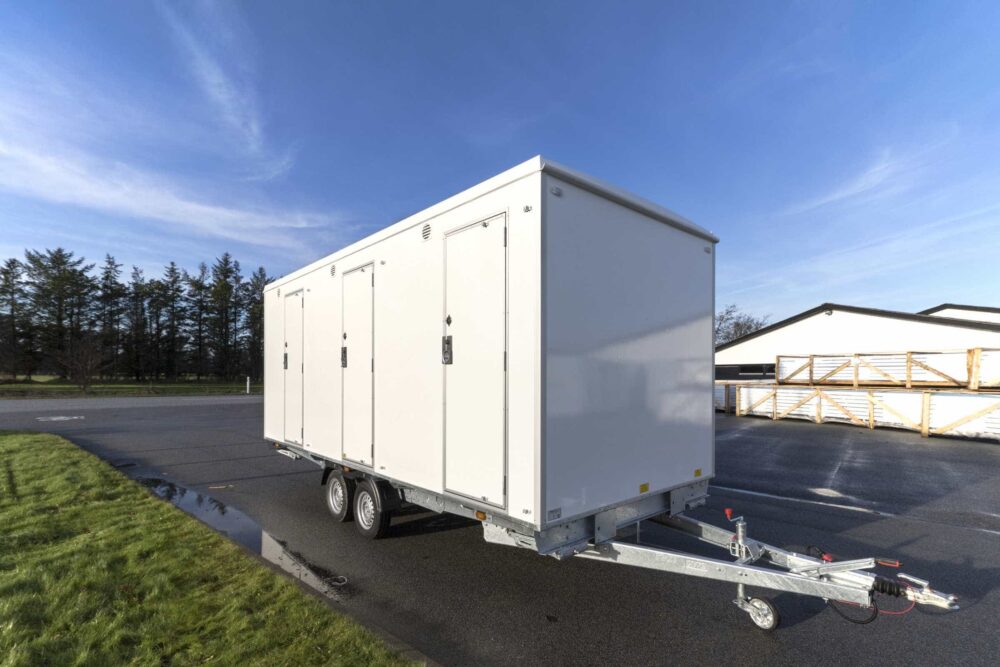

Shower & Toilet Trailer 570

3 in 1 Portable Bathrooms

Provides three shower + toilet cubicles in one simple solution.  The Scanvogn Bathroom Trailer also comes in a 420 model 2in1 and 240 single model.

The bathroom trailer is often used by:

  • People whose homes are undergoing renovation
  • Construction sites where staff need access to an onsite toilet and shower.
  • Outdoor events that need showers such as pool parties, beach events and festivals with overnight camping.

All Scanvogn cabins are customisable so if the standard solution is not quite what you need,  you can make your portable bathroom exactly the way you want it. There is a range of additional options that can be included.

Toilet Type

This model comes equipped with our standard flushing toilet waste disposal. For people who have a connection to external water and drainage on site, then this is the toilet solution for you. The toilet works like a normal toilet in the home (but with disposal for extra reliability) and therefore feels natural and comfortable. We supply the toilet in an upright or wall-mounted version, and with or without visible pipes. If the pipes are hidden, the cabin is built with a technical compartment, for easy servicing of the toilet. This toilet type is also used in our 2in1 240A toilet units and 4+2 420 toilet units.

Easy To Use & Clean

The trailer is connected to a standard towbar and can be set up and ready in a few minutes. This makes it possible to move the trailer from place to place quickly and efficiently without any hassle. The trailer is made of clean and durable materials, and sleek minimalist designs, saving time for cleaning and maintenance.

Ideal For

Scanvogn portable shower & toilet block trailers are ideal for a range of industries and applications such as:

  • Music Festivals
  • Catering & Hospitality Events
  • Field Day Events
  • Glamping Grounds
  • Horse & Country Events
  • Motor Racing
  • Construction & Demolition Sites
  • Exhibitions & Shows
  • Outdoor Events
  • Private Functions
  • Sporting Events

The trailers provide clean and hygienic ablution facilities for customers and staff.

Additional information

Weight5 kg


Model Name

Standard Bathroom 570 3in1

Model No.


Internal Dimensions

5596 x 2176 x 2100 mm

External Dimensions

5700 x 2280 x 2700 mm

Own Weight

1450 kg

Total Weight

1500 kg


3 people


3 toilets with waste disposal, 3 shower cabinets, 3 hand basins 3 compact laminate countertops 3 fixed benches, 6 towel holders, 12 coat hooks 3 electric ventilation, 3 floor drainages 3 windows 510 x 410 mm 3 technical compartments 3 free standing steps 6 radiators 400 V – 16 A CEE inlet, 230 V – 16 A CEE outlet 3 30 L water heaters LED light strip Electrical circuit panel
