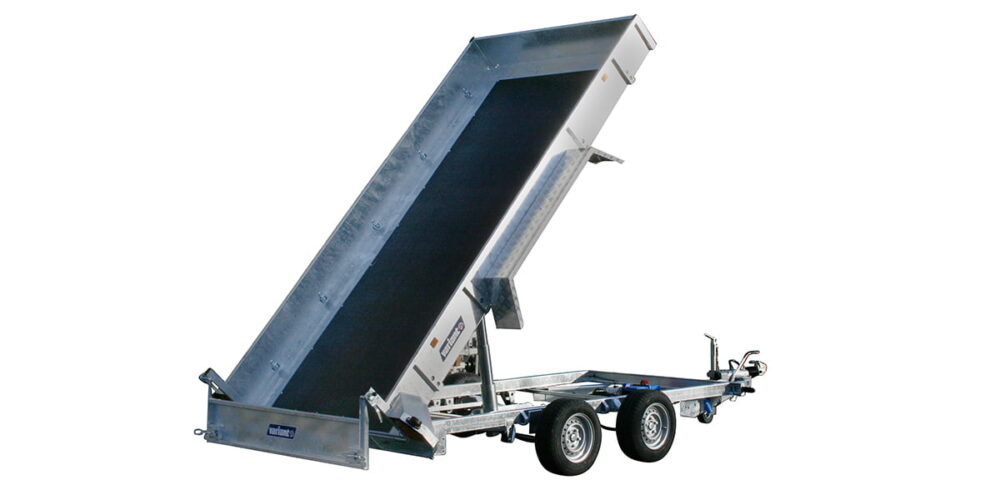

Machine Tipper Trailer 3517 MT -3,500Kg – 3.60 x 1.70m

Tandem 48 degrees electric hydraulic steel tipper trailer. 3.6m long box and 2,556 kg payload capacity, perfect for transporting plant equipment and machinery as well as dumping construction loads. Galvanised steel chassis for durability and longevity. Dual axles with mechanical overrun brakes.

Additional information



Product Code

3517 MT


Auto-Transporters, Machine Series

Internal Dimensions (LxWxH)

360x170x30 cm

Total Dimensions (LxWxH)

520x215x94 cm

Tare Weight

944 kg

Total Weight (ATM)


Payload Capacity

2,556 kg

Loading Height

46 cm


12", 5 Studs, 4 Wheels


2 Axles, With Brakes

Side Material

Galvanized Steel

Floor Material

Phenolic Plywood 18mm

Interior Tie Down Anchor Points

10 Hooks

Opening / Detachable Sides

Back (Tailgate)

Other Included Features

13 or 7 Pin Plug, Jockey Wheel, Parabolic Leaf Springs

Optional Extras

Aluminium Floor Material, Cage Grill Sides 80cm, Driving Ramps 2800 kg 175 cm, LED Lights Kit with Control Box, Platform For Shovel, Support Legs / Prop Stands x2, Tool Box, Wheel Change to 13" Terrain, Wheel Change to 14" High Profile

Back Tip Angle

48 degrees

Ramp Angle

12 Degrees

Rough Size In Feet

12×5.6 ft


For Specs, see the “Trailer Information” section above, or the Variant Trailers website.

All of our trailers are designed and manufactured in Denmark for optimum quality, for this reason we may not have all trailers in stock at the time of enquiry. Please remember whether it is a bench made trailer or manufactured to order always allow yourself an ample time period to get the right trailer to fit your needs. Contact us to order now!

Optional Extras Available With This Model:

Smooth steel bottom $ 578
Backrests 1 pc. $ 270
Platform for shovel $ 523
Cage 80 cm $ 1,925
Wireless operation via app $ 528
LED light set $ 1,319
Drawer ramps – 2800 kg 175 cm $ 1260
