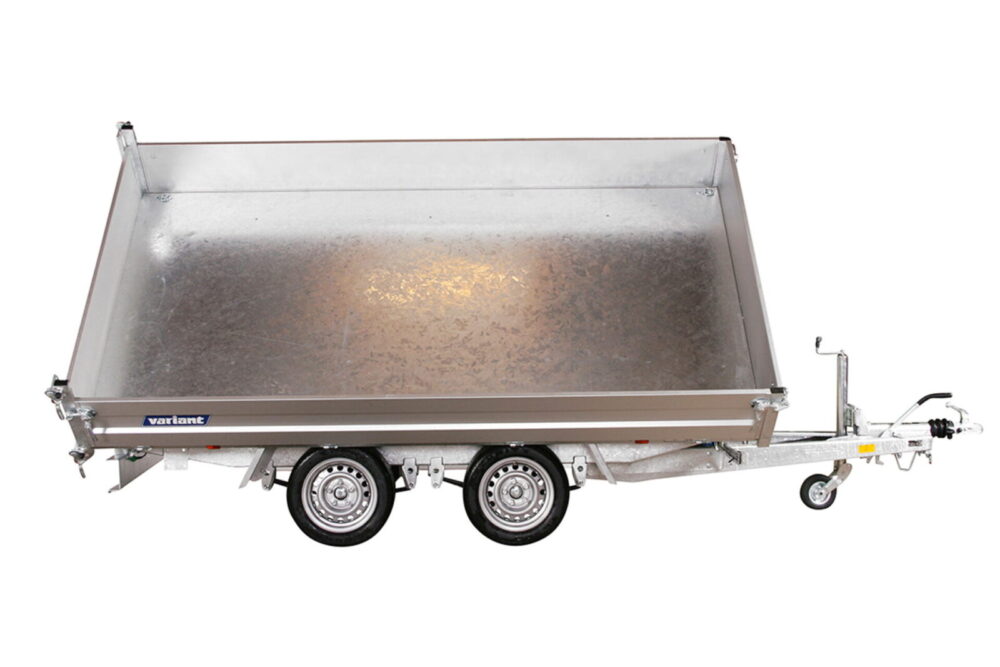

Tipper Trailer 3517 TB 3,500Kg – 3.20 x 1.68m

Tandem Aluminium electric hydraulic three-way tipper trailer. 3.2m long box and 2,600kg payload capacity, perfect for transporting and dumping gravel, sand, rubble and other construction materials. Hot dipped Galvanised steel base & chassis for durability and longevity. Dual axles with mechanical overrun brakes.

Additional information



Product Code

3517 TB


3-Way Tip Series, Tipper Trailers

Internal Dimensions (LxWxH)

320x170x35 cm

Total Dimensions (LxWxH)

475x186x120 cm

Tare Weight

900 kg

Total Weight (ATM)


Payload Capacity

2,600 kg

Loading Height

72 cm


13", 5 Studs, 4 Wheels


2 Axles, With Brakes

Opening / Detachable Sides

All 4 Sides

Side Material


Floor Material

Hot Dipped Galvanised Steel

Interior Tie Down Anchor Points

8 Hooks

Other Included Features

13 or 7 Pin Plug, Ball Coupling With Inbuilt Lock, Corded Remote Control, Electric Hydraulic Tip, Jockey Wheel, Manual Emergency Pump, Parabolic Leaf Springs, Removable Corner Posts, Wireless Operation Via Phone App

Tip Type

Hydraulic Tip

Back Tip Angle

50 degrees

Side Tip Angle

47 degrees

Optional Extras

Cage Grill Sides 100cm, Cage Grill Sides 60cm, Driving Ramps 4000kg 260cm, Extra Height Opening Steel Sides 35cm, Flat Tarp, Ladder Rack 70cm, LED Lights Kit with Control Box, Support Leg In The Back x1, Wheel Change to 13" Terrain, Wheel Change to 14" High Profile, Wireless Remote Control

Rough Size In Feet



Three Way Tipper Trailer 3517 TB

A three way tipper just like the 3017 TB and 3519 TB.

Variants MAXI-LOAD tippers are professional and strong 3-way tippers with electric hydraulic tip.

The All-new 3-way tippers complete, strong and sturdy.
The suspension is excellent thanks to through-axles with parabolic leaf springs and the large brake drums with closed bearings.
At the same time, the loading height is so low that it is easy to run machines on the trailer.
The new 3-way tipper is made in an extra heavy duty construction with galvanized chassis, frames, towing coupling.
The base of the trailer is a continuous steel plate folded and galvanized.

The new tipper is with sturdy lashing hooks, built-in driving ramp drawers and high tip angle for all sides.

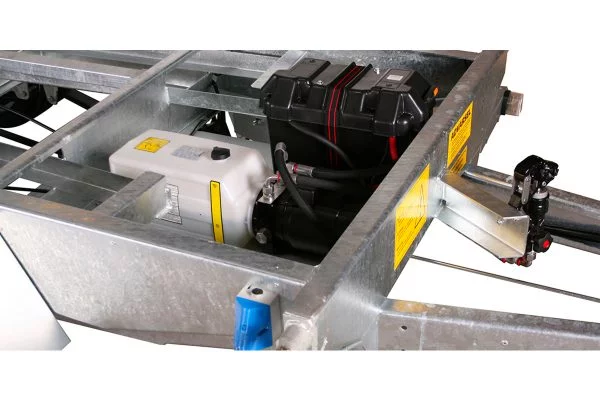

Electric hydraulic Pump, manual override, built-in battery and charger are standard.
The inertia brake is with built-in reverse and powerful contractor jocky wheel.


Standard Equipment All models:

  • Electric Hydraulic Tip
  • Manual Hydraulic handpump
  • Built-in battery with charger
  • Inverter cable for direct connection to wall outlet
  • Contractor jockey wheel
  • 6 Interanl tie downs (8 pcs of 3519 TB)
  • 35 cm. High aluminium sides
  • Double-hinged tailgate
  • Lockable holes for running ramps under charged


Optional accessories All models:

  • Flat Tarpaulin
  • Powerful pivoting bipod in the rear
  • Aluminium driving Ramps – 2.5 m. 4,000 kg.
  • Solid and mesh grill, 60 cm. High and 100 cm. High
  • Additional aluminum sides
  • Wireless Remote Control
  • Front frame (H-frame) for ladders

Why Choose A Variant Trailer:

  • More than 400,000 sold trailers are our guarantee of quality, safety and comfort.
  • Our chassis frames are hot dipped galvanised and with high demands on quality, safety and reliability – that’s why we develop the very strongest and sturdiest trailers you will find from Europe.
  • New E4 rated Tubeless radials on all wheels.
  • Using either knot rubber torsion suspension system or axle leaf spring systems for greater road stability.
  • With safety white reflectors to the front, amber reflectors to the side and red to the rear as standard.
  • Bright White safety reversal light.
  • Whether It’s a 2000kg, 2700kg or 3500kged knot, all couplings have a lockable position for greater security.
  • Our Knott Braking system is of the mechanical overrun type – the hydraulically dampened overrun control device includes drum braking to all wheels, a dedicated handbrake and auto reverse mechanism.
  • TUV load securing system with lashing brackets integrated into the side edges.
  • Removable corner posts.
  • Unique Easy Attachment panel hinges.
  • Heavy profileed aluminum Front, rear and side panels with integrated fasteners.
  • When Choosing your trailer, you will see that our tare weights are lower meaning greater payloads and overall reduced fuel consumption.
  • Our trailers are designed to get the job done in the right situation.
  • We deliver to businesses, government and private individuals, who want to work with the strongest trailers.
  • Extra weather treatments can be added to your trailer to increase protection against atmosphere and increase weather repellence.

For Specs, see the “Trailer Information” section above, or the Variant Trailers website.

All of our trailers are designed and manufactured in Denmark for optimum quality, for this reason we may not have all trailers in stock at the time of enquiry. Please remember whether it is a bench made trailer or manufactured to order always allow yourself an ample time period to get the right trailer to fit your needs. Contact us to order now!

Optional Extras Available With This Model:

Flat Tarp $ 495
Extra alusides open up. 35 cm $ 1,513
Cage 60cm $ 1,650
Cage 100 cm $ 2,200
Backrests 1 pc. $ 270
front Stand $ 220
Wireless remote control $ poa
LED light kit incl. control box $ 1,099
Wheel change to 13 “terrain $ 220
Wheel change to 14 “high profile $ 141
Driving ramps 4000 kg 250 cm $ 1,133
