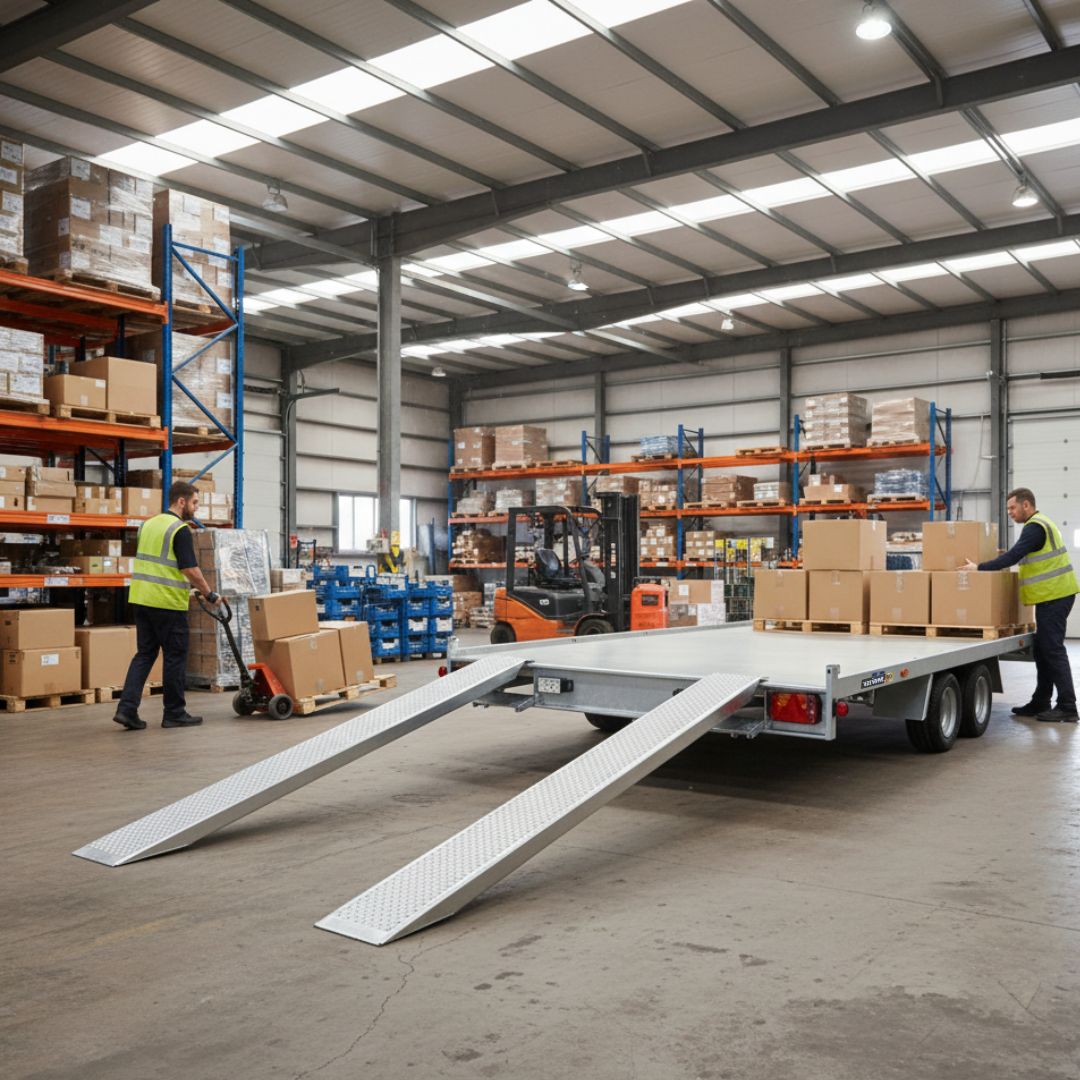

Variant FlatBed Trailer 3521 L4 – 3,500Kg – 2.40 x 2.04m

$14,935.00

Variant Aluminium Flatbed trailer with wire winch. 4.2m long deck, 2,800kg load, 2.1m wide, 59cm high, 14° angle. 8.8 sq.m load area – perfect for transporting oversized loads and pallets, unusual shapes as well as automotives. Galvanised steel chassis tandem axle for durability and longevity. Full RVS approved with ADR approved mechanical overrun brakes and emergency breakaway cable – no electric control needed. Low coupling weight, balanced center of gravity load trailer. Parabolic leaf spring suspension. Adjustable winch bracket-left or right. Retractable jockey wheel.

As a Danish concept, Variant sets design standards in Australian trailer engineering quality, new sizing – return on your trailer investment. The resulting longevity of quality trailer components will continue delivering service for years to come. Flat bed trailers from 1.5m to 6.2m long, Weatherproof plywood or steel floor, from 1.4m to 2.5m wide. Low tare & low coupling weight, high strength – hot-dip galvanised chassis. Federally approved to RVSA 2023. German mechanical override braking, breakaway cable, auto-reverse, balanced centre of gravity load trailer. No need for electric brake controller. Suitable for companies with multiple trailer use, fleet and hire, mining, civil and trackside.

Our trailer yard is in Erina, Central Coast. We have customers in and also deliver to Sydney, Newcastle, New South Wales, Victoria, Queensland, Western Australia, Tasmania, Australian Capital Territory and Northern Territory.

Description

Variant Flatbed Trailer 3521 L4

Variant flatbed trailer for sale with rib-grip aluminium deck. Ramp drawers under deck, ramps available, 4.2m long deck, 2,800kg load, 2.1m wide, 59cm high, 14° angle, 8.8 sq.m load area. Perfect auto hauler -Knott stong winch and brace arm Tandem axle – 3500kg ATM. Low coupling weight, balanced center of gravity load trailer. Designed for towing not dragging. Parabolic leaf spring suspension. Adjustable winch bracket-left or right. Built into frame tie down brackets -either side. Low coupling weight, balanced center of gravity load trailer. Designed for towing not dragging. Parabolic leaf spring suspension. Adjustable winch bracket-left or right. Built into frame tie down brackets -either side. Retractable jockey wheel.

  • More than 400,000 sold trailers are our guarantee of quality, safety and comfort.
  • Our chassis frames are hot dipped galvanised and with high demands on quality, safety and reliability – that’s why we develop the very strongest and sturdiest trailers you will find from Europe.
  • New rated Tubeless radials on all wheels.
  • Using either Knott rubber torsion suspension system or axle leaf spring systems for greater road stability.
  • With safety white reflectors to the front, amber reflectors to the side and red to the rear as standard.
  • Bright White safety reversal light.
  • Our Knott Braking system is of the mechanical overrun type – the hydraulically dampened overrun control device includes drum braking to all wheels, a dedicated handbrake and auto reverse mechanism.
  • TUV load securing system with lashing brackets integrated into the side edges.
  • Heavy profiled aluminium front, rear and side panels.
  • When choosing your trailer, tare weights are lower meaning greater payloads, smoother towing and overall reduced fuel consumption.
  • Our trailers are designed to get the job done in the right situation.
  • We deliver to business, government and private individuals, fleet and hire.
  • Extra weather treatments can be added to your trailer to increase protection against atmosphere and increase weather repellence.



35cm double profile aluminium sides – fantastic business marketing/advertising panels. Rubber torsion independent suspension. Low tare -max payload.
Low coupling weight, balanced centre of gravity load trailer. Designed for towing not dragging your loads. Tie down brackets (built-in) -either side.
Full RVS approved with ADR approved mechanical overrun brakes and emergency breakaway cable – no electric control needed.
Two-year warranty, full-service support. Parts -spares available 24/7.



OPTIONAL EXTRAS AVAILABLE WITH THIS MODEL:

  • Shock absorbers (excl. Approved)- Smoother towing of trailer with these to absorb or dampen the compression and rebound of the springs and suspension.
  • Standard Spare Wheel with bracket- Good to have a spare in case of puncture.
  • Toolbox mounted below floor- Built in lock for storage of small items such as tools or straps.
  • Extra alusides open up. 35 cm- Increasing trailer load with additional space.



For additional trailer information, see the “Specifications” section above, or the Variant Trailers website.

Variant trailers are designed and manufactured in Denmark with maximum quality and strength, sometimes the trailer for sale may not be one of the trailers in stock. We pride ourselves with the finest of quality & crafted galvanised trailers for sale, that will suit your needs with designs to meet your trailer requirements. When searching Google or Bing- trailers for sale, think robust, tough, capacity, weight, ease of use and towability, for maximum return on your investment. Contact us to order your trailer now!

Additional information

Weight 5 kg
Manufacturer

Variant

Product Code

3521 L4

Series

Auto-Transporters, Flatbeds

Internal Dimensions (LxWxH)

420x204x4 cm

Total Dimensions (LxWxH)

589x211x70 cm

Tare Weight

700 kg

Total Weight (ATM)

3,500 kg

Payload Capacity

2,800 kg

Loading Height

59 cm

Wheels

13", 5 Studs, 4 Wheels

Axles

2 Axles, With Brakes

Floor Material

Aluminium (Ruflet)

Other Included Features

13 or 7 Pin Plug, 8 Lashing Straps, Aluminium Driving Ramps 4000kg, Jockey Wheel, Parabolic Leaf Springs, Ramp Drawers, Wire Winch

Optional Extras

Alu Wheel Stop x1, LED Lights Kit with Control Box, Removable Aluminium Sides 35cm, Rotatable Support Leg x1, Wheel Change to 13" Compact, WheelWheel x1

Ramp Angle

14 degrees

Rough Size In Feet

14×7
