FlatBed Trailer 3522 L5 – 3,500Kg – 5.17 x 2.19m

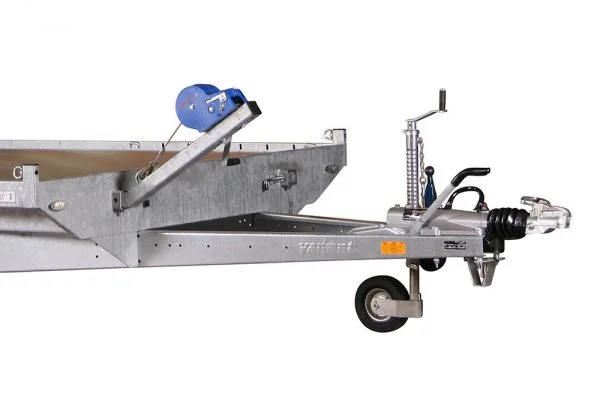

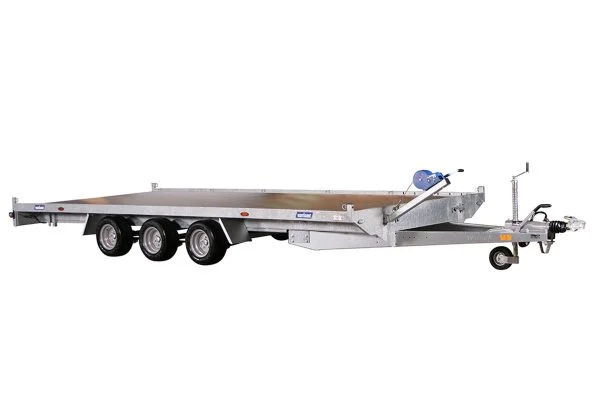

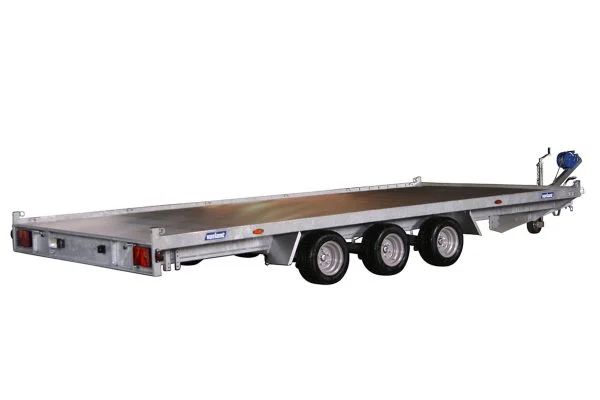

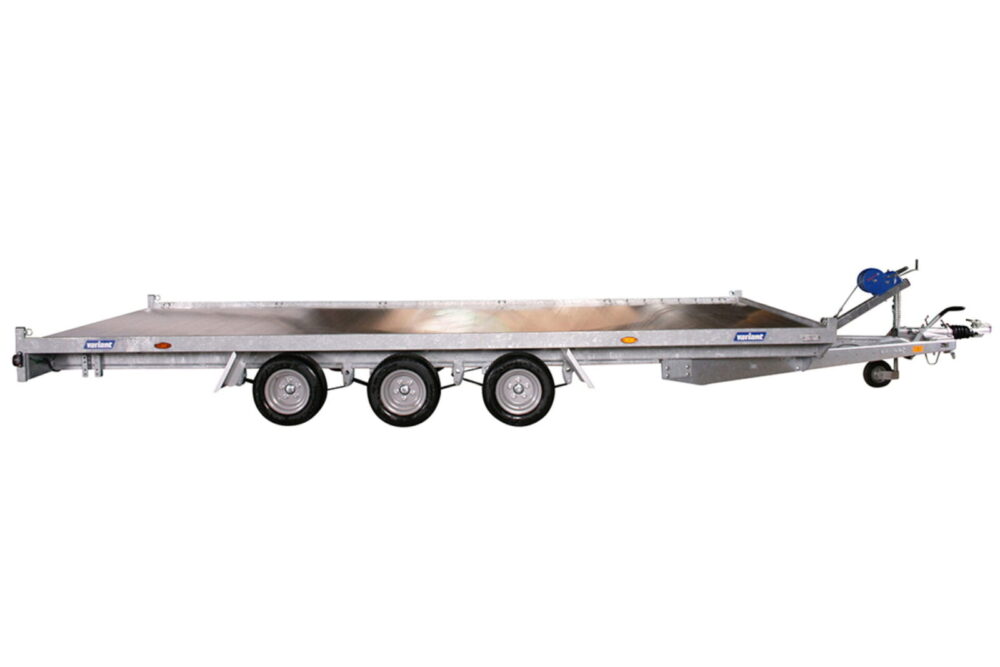

Tri-Axle Aluminium Flatbed trailer with wire winch.  5.17m long bed and 2,640kg payload capacity,  perfect for transporting heavy automotive, machinery and heavy or long pallets with unusual shapes as well as bulk loads. Galvanised steel chassis for durability and longevity. 5.2m long deck,  2,640kg load, 2.1m wide, 55-59cm high, 14° angle. 11.3 sq.m load area – perfect for transporting oversized loads and pallets, unusual shapes as well as automotives. Galvanised steel chassis tandem axle for durability and longevity. Parabolic leaf spring suspension.  Adjustable winch bracket-left or right. Retractable jockey wheel.

As a Danish concept, Variant sets design standards in Australian trailer engineering quality, new sizing – return on your trailer investment. The resulting longevity of quality trailer components will continue delivering service for years to come. Flat bed trailers from 1.5m to 6.2m long, Weatherproof plywood or steel floor, from 1.4m to 2.5m wide. Low tare & low coupling weight, high strength – hot-dip galvanised chassis. Federally approved to RVSA 2023. German mechanical override braking, breakaway cable, auto-reverse, balanced centre of gravity load trailer. No need for electric brake controller. Suitable for companies with multiple trailer use, fleet and hire, mining, civil and trackside.

Our trailer yard is in Erina, Central Coast. We have customers in and also deliver to Sydney, Newcastle, New South Wales, Victoria, Queensland, Western Australia, Tasmania, Australian Capital Territory and Northern Territory.


Flatbed Trailer 3522 L5

Variant Flat bed Trailer, 3522 L5

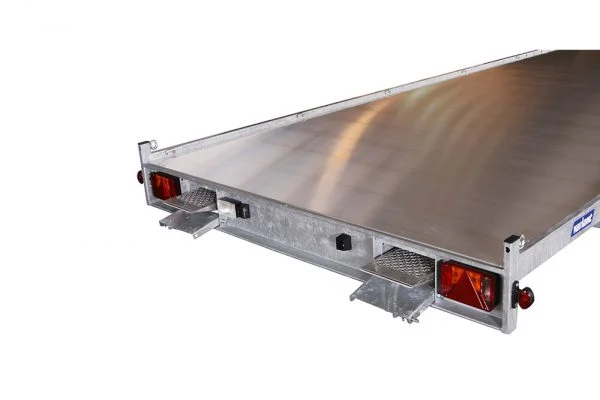

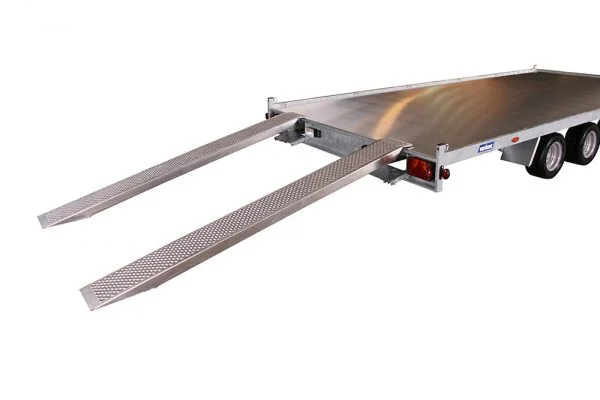

Variant flatbed tri axle trailer for sale with rib-grip aluminium deck. Ramp drawers under deck, ramps available, 5.17 long . 5.2m long deck,  2,640kg load, 2.1m wide, 55-59cm high, 14° angle. 11.3 sq.m load area. Perfect auto hauler -Knott stong winch and brace arm, tri-axle – 3500kg ATM.

  • More than 400,000 sold trailers are our guarantee of quality, safety and comfort.
  • Our chassis frames are hot dipped galvanised and with high demands on quality, safety and reliability – that’s why we develop the very strongest and sturdiest trailers you will find from Europe.
  • New rated Tubeless radials on all wheels.
  • Using either Knott rubber torsion suspension system or axle leaf spring systems for greater road stability.
  • With safety white reflectors to the front, amber reflectors to the side and red to the rear as standard.
  • Bright White safety reversal light.
  • Our Knott Braking system is of the mechanical overrun type – the hydraulically dampened overrun control device includes drum braking to all wheels, a dedicated handbrake and auto reverse mechanism.
  • TUV load securing system with lashing brackets integrated into the side edges.
  • When choosing your trailer, tare weights are lower meaning greater payloads, smoother towing and overall reduced fuel consumption.
  • Our trailers are designed to get the job done in the right situation.
  • We deliver to business, government and private individuals, fleet and hire.
  • Extra weather treatments can be added to your trailer to increase protection against atmosphere and increase weather repellence.

Low coupling weight, balanced center of gravity load trailer. Designed for easy towing not dragging. Parabolic leaf spring suspension.  Adjustable winch bracket-left or right. Built into frame tie down brackets -either side. Retractable jockey wheel. Two-year warranty, full-service support. Parts -spares available 24/7.


Optional Extras Available With This Model:

* Please note: A Wheel Change to 13″ is recommened for long base trailers on Australian roads.

  • Aluminium Floor- Increase trailer life and provide a non-slip flooring.
  • LED light kit incl. control box- Trailer light replacement kit.
  • Toolbox mounted below floor- Built in lock for storage of small items such as tools or straps.
  • Standard Spare Wheel with bracket- Good to have a spare in case of puncture.
  • Shock absorbers (excl. Approved)- Smoother towing of trailer with these to absorb or dampen the compression and rebound of the springs and suspension.


For additional trailer information, see the “Specifications” section above, or the Variant Trailers website.

Variant trailers are designed and manufactured in Denmark with maximum quality and strength, sometimes the trailer for sale may not be one of the trailers in stock. We pride ourselves with the finest of quality & crafted galvanised trailers for sale, that will suit your needs with designs to meet your trailer requirements. When searching Google or Bing- trailers for sale, think robust, tough, capacity, weight, ease of use and towability, for maximum return on your investment. Contact us to order your trailer now!

Additional information

Weight5 kg


Product Code

3522 L5


Auto-Transporters, Flatbeds

Internal Dimensions (LxWxH)

517x219x4 cm

Total Dimensions (LxWxH)

645x226x70 cm

Tare Weight

860 kg

Total Weight (ATM)

3,500 kg

Payload Capacity

2,640 kg

Loading Height

55 cm


10", 5 Studs, 6 Wheels


3 Axles, With Brakes

Floor Material

Aluminium (Ruflet)

Other Included Features

13 or 7 Pin Plug, 8 Lashing Straps, Aluminium Driving Ramps 4000kg, Jockey Wheel, Parabolic Leaf Springs, Ramp Drawers, Wire Winch

Optional Extras

Alu Wheel Stop x1, LED Lights Kit with Control Box, Removable Aluminium Sides 35cm, Rotatable Support Leg x1, Wheel Change to 13" Compact, WheelWheel x1

Ramp Angle

14 degrees

Rough Size In Feet
