BALL COUPLING

Additional information

Item no

575003

Connection

Ø45/Ø50 mm

Version

Type 2

Permissible Total Weight

2700 kg

Screw Connection

1x horizontal, 1x vertical

Bolt

M12/M12

Support Load

200 kg

D/DC value

27 kN

ECE License Mark

E11 55R-010173

Lockable

Yes

Safety Display

No

Softdock

No

Track Stabilisation

No

Weight

4.1 kg

Description

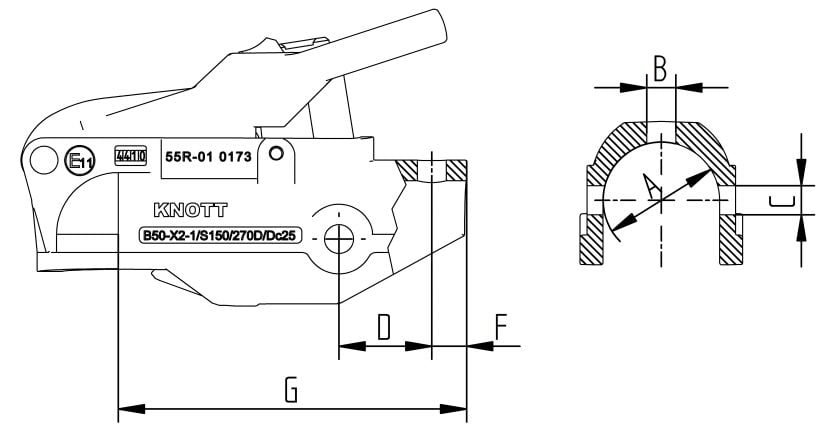

Line drawing measurements
B: 12.5 mm
C: 12.5 mm
D: 40 mm
F: 15 mm
G: 150 mm

Ø50 M12/M12-40 cross with reduction part to Ø 45
Reference number Avonride 17696
