Scanvogn – 240 Accessible Toilet Trailer
Disability Toilet & Shower Trailer 240
Portable toilet with disability accessibility
An accessible or ambulant toilet in one simple mobility accessible solution. Comes with a wide ramp and supports for wheelchair access. Also available in a larger sized unit with a shower cubical in the Disability Bathroom 320.
The 240 accessible/disabled toilet trailer has more space than our standard toilets. With an extra wide door and an aluminium ramp. The cabin contains toilet supports, a handle fitting, handbasin, a ceramic bowl, a macerator pump, separated technical room. The chassis can be lowered hydraulically to enable for a shallower ramp angle making access easy for those with wheelchairs or scooters.
The disability or accessible bathroom trailer is often used by:
- Outdoor events such as festivals, weddings and markets.
- Carers who need an accessible toilet available when going on day trips to public parks, beaches, etc.
- Remediation companies when carrying out building works for clients.
All Scanvogn cabins are customisable so if the standard solution isn’t quite what you need, you can make your portable toilet exactly the way you want it. There is a range of additional luxury options that can be included.
Customised fittings can be designed to offer several additional functions. In addition to toilet support, a hand fitting and a ramp, you can order a customised unit with a shower trolley, ceiling hoist and built on a height-adjustable chassis for easier access.
Toilet Type

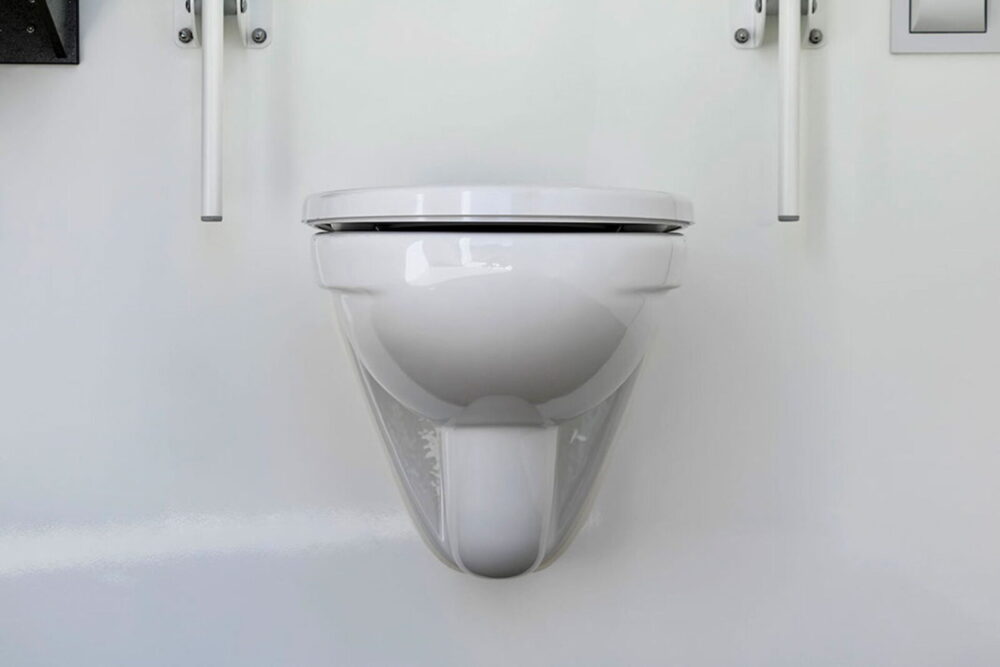

This model comes equipped with our standard ceramic bowl flushing toilet and macerator waste disposal. For people who have a connection to external water and drainage on site. The toilet works like a normal toilet in the home (but with disposal for extra reliability) and therefore feels natural and comfortable. Toilet supplied in an upright or wall-mounted version, with or without visible pipes. Hidden pipework in the main room, as the cabin is built with a technical compartment, for easy servicing of the toilet.
Easy To Use & Clean
The trailer is made of clean, non organic, hygienic and durable materials with minimalistic design, saving time in cleaning and maintenance. Trailer chassis is galvanised steel (Al-Ko) with single axle, is connected to a standard 50mm tow ball and can be set up and ready in a few minutes. This makes it possible to move the trailer from place to place quickly and efficiently without any hassle. Low tare, trailers can be towed by most passenger vehicles.
Scanvogn portable accessibility shower & toilet trailers are ideal for a range of industries and applications such as:
- Music Festivals
- Catering & Hospitality Events
- Field Day Events
- Glamping Grounds
- Horse & Country Events
- Motor Racing
- Construction & Demolition Sites
- Exhibitions & Shows
- Outdoor Events
- Private Functions
- Sporting Events
The trailers provide easily accessible, clean and hygienic ablution facilities for customers, guests and staff. NDIS suitable.
The disability toilet and shower trailer is perfect for disabled toilet use at festivals, events and for caretakers going on day trips and holidays. Comes equipped with our standard flushing toilet macerator waste disposal, completely mobile, easy to clean and use. Towable by most rated vehicles- tare weight approx 900kg. NDIS suitable.
• AL-KO CHASSIS – Using German AL-KO parts on all standardized chassis to ensure you one of the best trailer systems on the market. Rubber torsion-independent suspensions make a smoother ride with maximum protection of goods being carried.
• VISABILITY – All external vehicle lights are high and low, high-quality LED sealed for high visibility whilst travelling.
• BEST PROTECTION – Galvanizing is carried out after the chassis has been mechanically machined so that all edges and bolt holes are also protected.
• FULLY MOLDED CURVED ROOF – Molded roof with a smooth curvature to optimize strength and direct water/snow and dirt away from the centre of the roof to the gutter -front and rear.
• GUTTER SYSTEM – Directional gutters along the sides to gutter at each gable to direct water and dirt away from users, doors and windows.
• DURABLE PANELS – Using UV-stabilised bright white fibreglass which contains a high number of fibres for best strength and durability. Totally weatherproofed and the perfect base for vinyl wrapping.
• EU – CERTIFIED – All our standard windows are gas-filled double glazing for extreme thermal efficiency, and screen boxes and lights are EC certified. Our wagons can therefore be driven legally throughout the EU and Au, in extreme heat and cold.
• STRONG WALLS – All external walls are seam cut and placed so that the angles close tightly around the floor for maximum strength and tightness.
• ENERGY-FRIENDLY LIGHT – Using daylight white LED light strips in all rooms, which gives you a comfortable white and energy-friendly light with a modern look.
• SPECIAL COMPONENTS – We produce several of our own sub-components ourselves, so we can offer you higher quality at a reasonable price.
• GUARANTEED SPARE PARTS – We have a large spare parts warehouse, where most parts can be shipped from day to day.
• COMPACT LAMINATE – All our table tops are high-density compact laminate which will not rot or create mould. This makes them resistant to water and humidity & bacteria. Excellent for testing or catering rooms.
• TOUCH-FREE FITTINGS – Option to choose touch-free fittings or toilet flush. (Specific to Covid-19 compliance) With durable/fully washable materials, so you spend as little time on cleaning and maintenance as possible.
• SPACIOUS – With ceiling heights of 2100mm and bigger and widths from up to 2380mm, we pride ourselves on having the most spacious models.
• TOWABILITY – Our trailer systems use lightweight low-tare strong chassis, combined with very lightweight panels, we know we have the lightest, most efficient mobile room system available. Overrun mechanical all-wheel drum braked, with breakaway safety cables and independent handbrake – there is no adjustment needed by the user.
• ROI – All in all, with great resale values, this gives you the best business investment, easiest to manage, most sustainable fuel-saving mobile trailer system, on the market.
More Information
| Manufacturer | Scanvogn |
|---|---|
| Model Name | Disabled Toilet with grinder 240 |
| Model Number | 1800105/1850006 |
| Internal Dimensions | 1906 x 1746 x 2100 mm |
| External Dimensions | 2400 x 1850 x 2700 mm |
| Own Weight | 750 kg |
| Total Weight | 900 kg |
| Capacity | 1 person |
| Facilities | Wall-mounted toilet, waste disposal, hand basin with hand fitting Compact laminate work surface, 2 mirrors 400 x 300 mm Toilet support, aluminium ramp (for wheel chair) Extra wide door 922 mm, windows: 1 510 x 410 mm 2 towel holders, 2 coat hooks Height-adjustable chassis with hydraulic pump Technical compartment 2 stk radiatorer 230 V - 16 A CEE inlet 5 L water heater LED light strip Electrical circuit panel |
