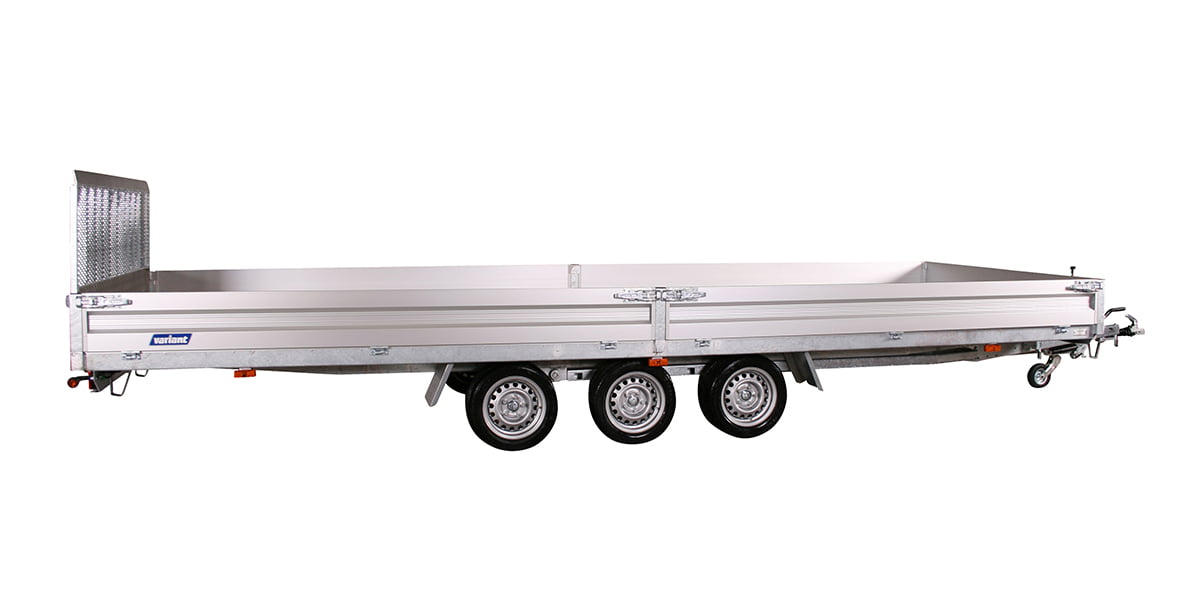

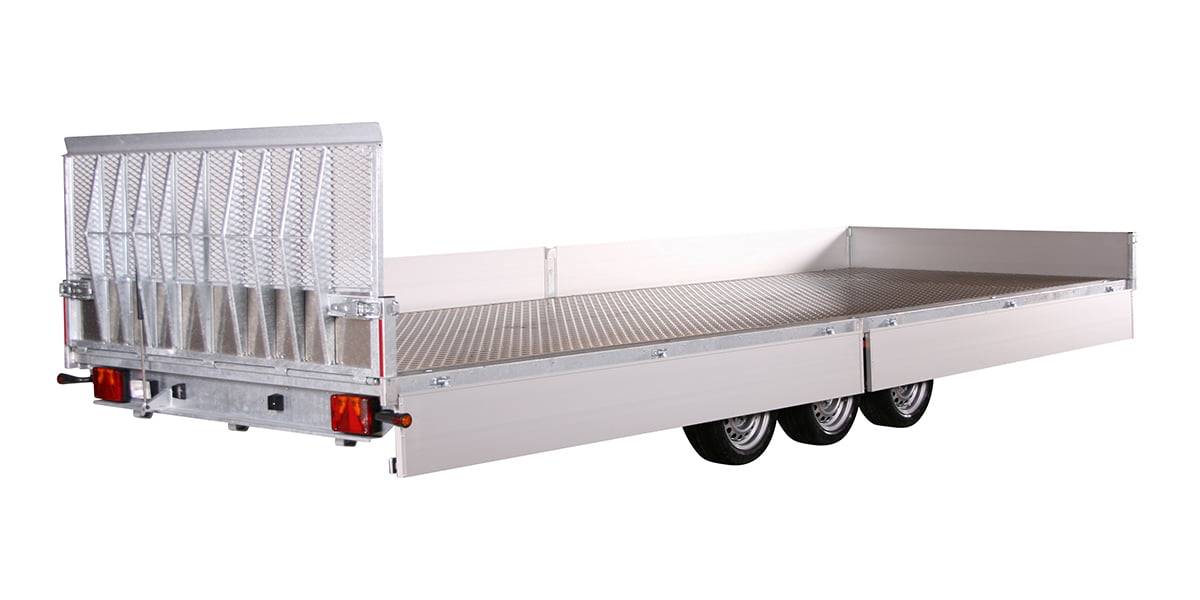

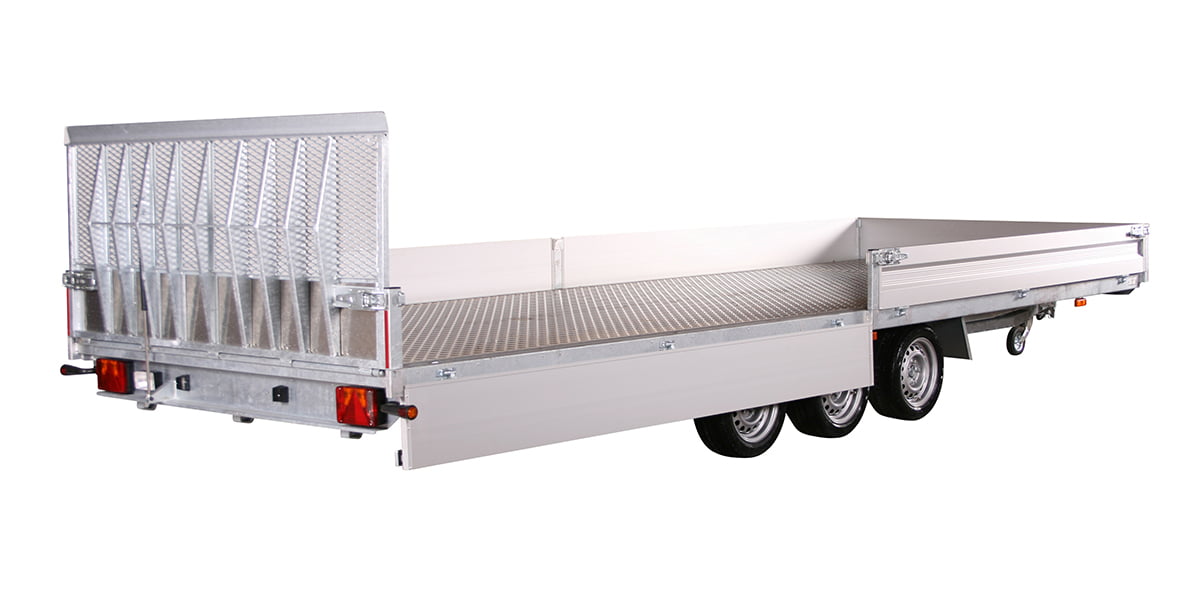

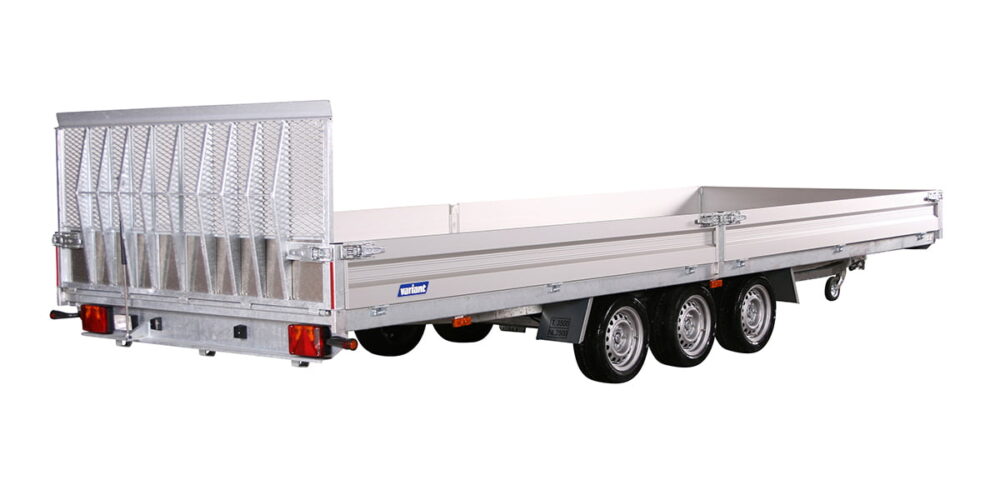

Universal Trailer 3563 UX – 3,500Kg – 6.20 x 2.10m Maxi-Load


Tri-Axle tilt box trailer with tailgate ramp.  6.2m long box and 2,336 kg payload capacity,  perfect for transporting lawn mowers, vehicles, plant and other drive-on equipment. Galvanised steel chassis for durability and longevity. Wheels are mounted underneath allowing all sides to be opened and removed for easy loading & unloading. Triple axles with KNOTT mechanical overrun brakes. Manual hydraulic tipper trailer function combined with strong rear ramp for ease of use.


Variant Universal Tipper Trailers for sale. Tip Trailer model 3563 UX – 3,500 Kg – 6.20 x 2.10 Maxi- Load Trailer. Featuring fully welded and hot dip galvanised chassis with extreme high strength, leaf springs ensuring superb suspension, detachable sides and corner posts, coupling with built in lock for anti theft protection.

Out of our tipping trailers for sale, this trailer is from our Universal tipper trailer series, which are known for their tipper function, maxi load

For additional information, see the “Specifications” section above, or the Variant Trailers website.

All of our trailers are designed and manufactured in Denmark for optimum quality, for this reason, we may not have all trailers in stock at the time of enquiry. Please remember whether it is a batch made trailer or manufactured to order always allow yourself an ample time period to get the right trailer to fit your needs. Contact us to order your trailer now!

Additional information

Weight5 kg


Product Code

3543 UX


Maxi-Load, Auto-Transporters, Commercial Box Trailers, Tipper Trailers, Universal Series

Internal Dimensions (LxWxH)

620x210x30 cm

Total Dimensions (LxWxH)

773x220x159 cm

Tare Weight

1,164 kg

Total Weight (ATM)

3,500 kg

Payload Capacity

2,336 kg

Loading Height

65 cm


13", 5 Studs, 6 Wheels

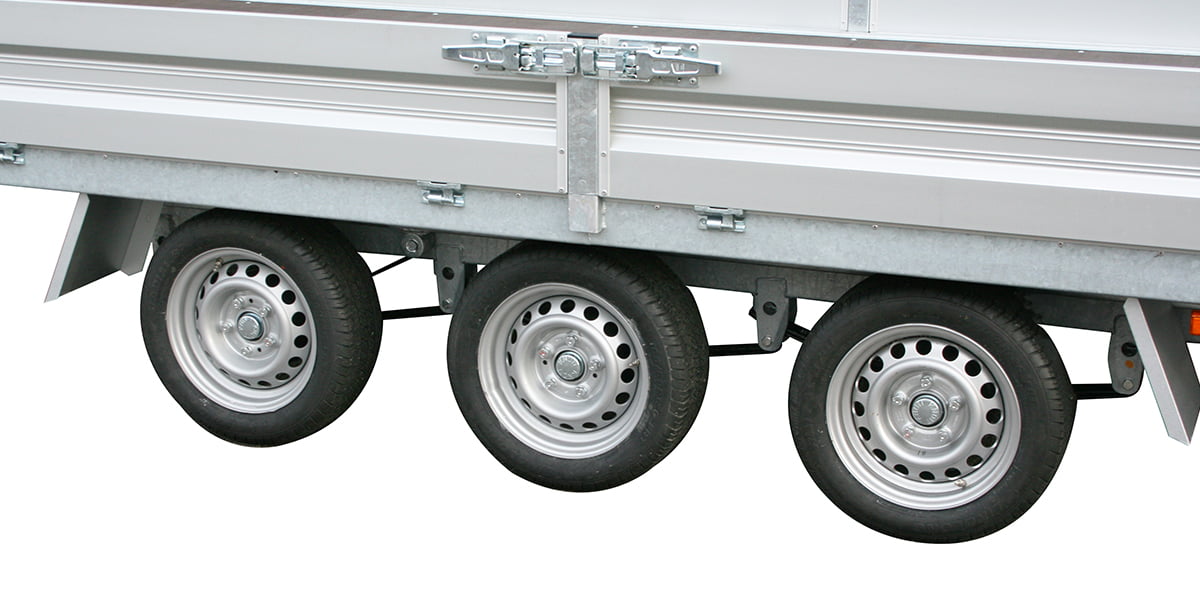

3 Axles, With Brakes

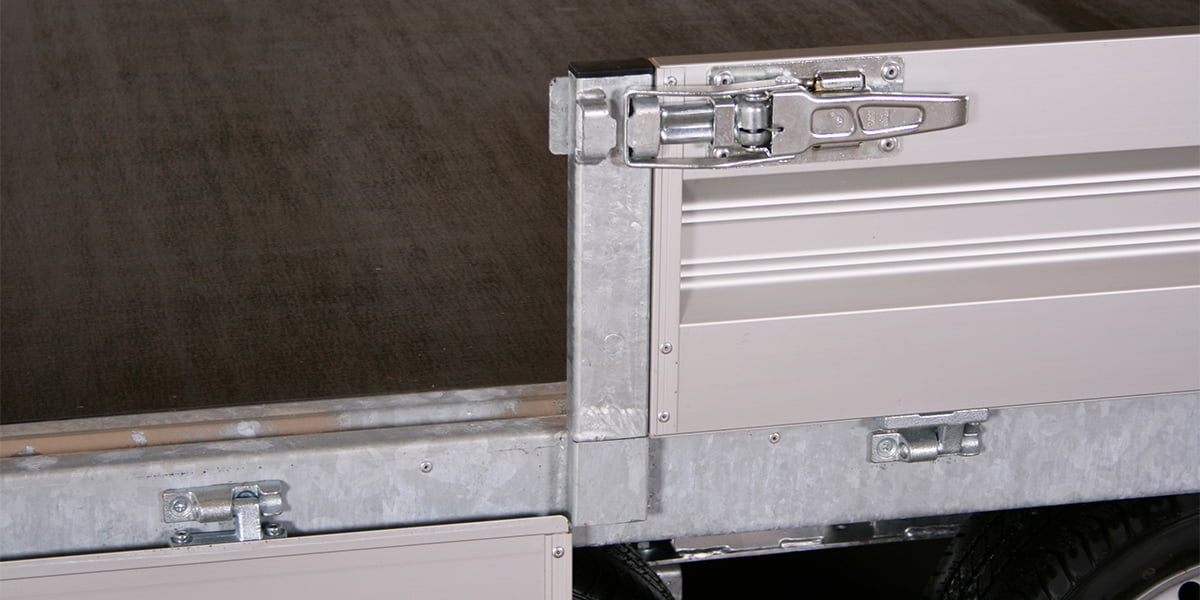

Opening / Detachable Sides

All 4 Sides

Side Material


Floor Material

Phenolic Plywood 18mm

Interior Tie Down Anchor Points

8 Hooks

Other Included Features

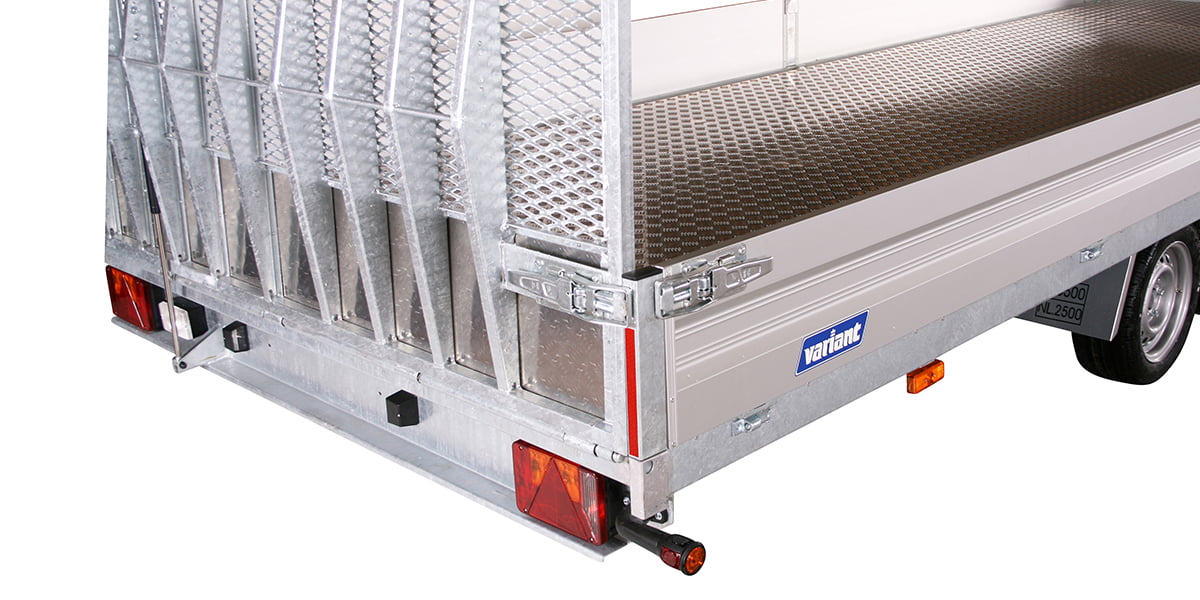

13 or 7 Pin Plug, Gas Struts On Back Ramp, Jockey Wheel, Removable Corner Posts, Strong Tailgate Ramp 90cm

Tip Type

Hydraulic Hand Pump Tilt, Hydraulic Tip

Back Tip Angle

11 degrees

Optional Extras

Aluminium Floor Material, Cage Grill Sides 60cm, Electric Tip including Battery & Charger, Electric Winch With Wire, Extra Height Opening Steel Sides 30cm, High Tarp with Inside Framing 210 cm, LED Lights Kit with Control Box, Ramp Stiffener, Removable Winch Braket, Winch With Wire, Wireless Remote Control for Electric Winch

Rough Size In Feet
