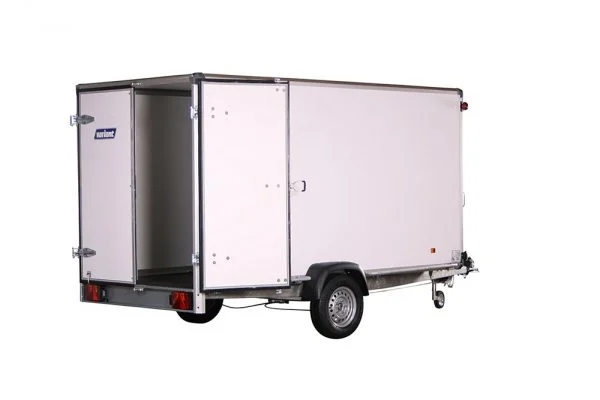

Cargo Trailer 1317 C4 – 1,350Kg – 3.46 x 1.68 x1.78m

Enclosed Box Van trailer. 3.5m long inside and 750kg payload capacity, perfect for transporting luggage, bulk materials, business goods & other cargo. Can be manufactured with side hatch. Hot dipped galvanised steel chassis for durability and longevity. Single axle with mechanical overrun brakes.

Additional information



Product Code

1317 C4


Closed-Series, Enclosed Trailers

Internal Dimensions (LxWxH)

346x168x178 cm

Total Dimensions (LxWxH)

490x211x233 cm

Rear Opening Dimensions (WxH)

137×182 cm

Tare Weight

615 kg

Total Weight (ATM)

1,350 kg

Payload Capacity

750 kg

Loading Height



13", 2 Wheels


1 Axle, With Brakes

Side Material

Phenolic Plywood with Fiberglass Finish 12mm

Floor Material

Phenolic Plywood 15mm

Interior Tie Down Anchor Points

6 Hooks

Other Included Features

Jockey Wheel, Rear Doors With Built-In Lock, Translucent Roof

Ramp Angle

17 degrees

Optional Extras

Aluminium Floor Material, Attached Back Ramp (Replaces Doors), Crossbar for Lashing Rail, Driving Ramps 400kg 200cm, Extra Door In Side 76x139cm, Foil Advertising On Exterior, Interior LED Lighting, LED Lights Kit with Control Box, Light Support Leg In The Back x1, Riser Rail to Ramp, Sales Door In Side 190x120cm, Tie Down Rails Inside, Wide Driving Ramp 70x200cm

Rough Size In Feet



For Specs, see the “Trailer Information” section above, or the Variant Trailers website.

All of our trailers are designed and manufactured in Denmark for optimum quality, for this reason we may not have all trailers in stock at the time of enquiry. Please remember whether it is a bench made trailer or manufactured to order always allow yourself an ample time period to get the right trailer to fit your needs. Contact us to order now!

Optional Extras Available With This Model:

Back Ramp (replaces back doors) $ 275
Riser rail to ramp $ 462
Lightweight backrest 1 pc. $ 77
Int. lighting LED $ 264
Extra door in side 76 × 159 cm $ 1,099
Sales slips in side 275 × 135 cm $ 1,649
Tie Down rails inside $ 616
Crossbar for Tie Down rail $ 275
Aluminium Floor $ 1,265
LED light set exterior $ 1,099
Driving ramps 1000 kg 200 cm $ 307
Driving ramp wide 70 × 200 cm $ 737
Foilering (own setup) $ 1,650
Foilering (including setup) $ 2,393
