Scanvogn – 420 4+1 Accessible Toilet Trailer

Portable disability bathroom, with wall mounted standard flushing toilet with macerator waste disposal, thermostatic shower, full width ramp and extra wide door. NDIS suitable.

• AL-KO CHASSIS – Using German AL-KO parts on all standardized chassis to ensure you one of the best trailer systems on the market. Rubber torsion-independent suspensions make a smoother ride with maximum protection of goods being carried.
• VISABILITY – All external vehicle lights are high and low, high-quality LED sealed for high visibility whilst travelling.
• BEST PROTECTION – Galvanizing is carried out after the chassis has been mechanically machined so that all edges and bolt holes are also protected.
• FULLY MOLDED CURVED ROOF – Molded roof with a smooth curvature to optimize strength and direct water/snow and dirt away from the centre of the roof to the gutter -front and rear.
• GUTTER SYSTEM – Directional gutters along the sides to gutter at each gable to direct water and dirt away from users, doors and windows.
• DURABLE PANELS – Using UV-stabilised bright white fibreglass which contains a high number of fibres for best strength and durability. Totally weatherproofed and the perfect base for vinyl wrapping.
• EU – CERTIFIED – All our standard windows are gas-filled double glazing for extreme thermal efficiency, and screen boxes and lights are EC certified. Our wagons can therefore be driven legally throughout the EU and Au, in extreme heat and cold.
• STRONG WALLS – All external walls are seam cut and placed so that the angles close tightly around the floor for maximum strength and tightness.
• ENERGY-FRIENDLY LIGHT – Using daylight white LED light strips in all rooms, which gives you a comfortable white and energy-friendly light with a modern look.
• SPECIAL COMPONENTS – We produce several of our own sub-components ourselves, so we can offer you higher quality at a reasonable price.
• GUARANTEED SPARE PARTS – We have a large spare parts warehouse, where most parts can be shipped from day to day.
• COMPACT LAMINATE – All our table tops are high-density compact laminate which will not rot or create mould. This makes them resistant to water and humidity & bacteria. Excellent for testing or catering rooms.
• TOUCH-FREE FITTINGS – Option to choose touch-free fittings or toilet flush. (Specific to Covid-19 compliance) With durable/fully washable materials, so you spend as little time on cleaning and maintenance as possible.
• SPACIOUS – With ceiling heights of 2100mm and bigger and widths from up to 2380mm, we pride ourselves on having the most spacious models.
• TOWABILITY – Our trailer systems use lightweight low-tare strong chassis, combined with very lightweight panels, we know we have the lightest, most efficient mobile room system available. Overrun mechanical all-wheel drum braked, with breakaway safety cables and independent handbrake – there is no adjustment needed by the user.
• ROI – All in all, with great resale values, this gives you the best business investment, easiest to manage, most sustainable fuel-saving mobile trailer system, on the market.

Description

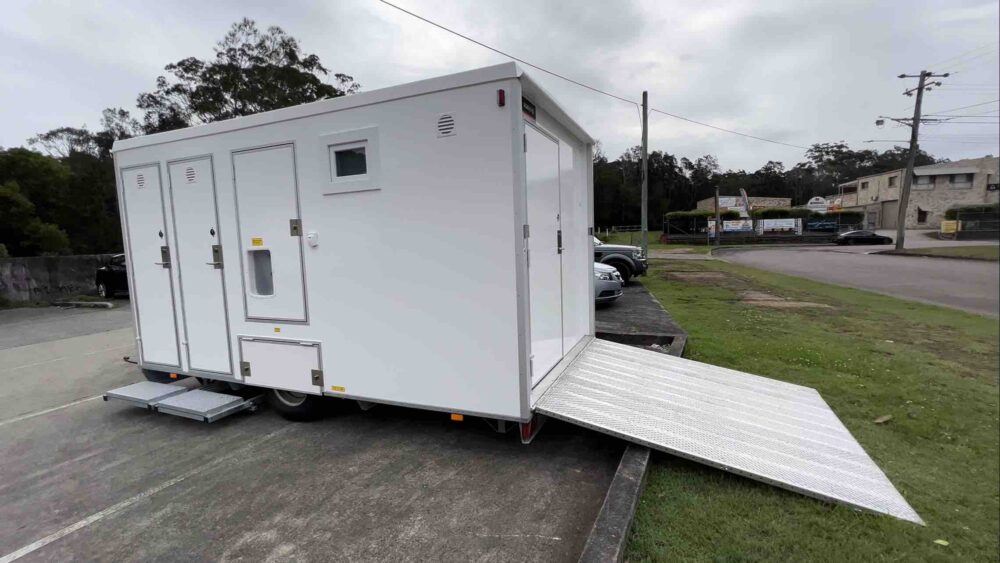

420 4+1 Accessible Toilet Trailer

Portable Accessible Toilet & Standard Toilet Trailer With Easy Access

The 420 4+1 provides users with a single accessible toilet and 4 standard toilets. This trailer is commonly used by local government, councils and event sites where multiple facilities with onboard tanks are required.

The accessible toilet cubicle inside the 420 4+1 has more space than the standard toilets and has an extra wide door, greater internal access and space. The cabin contains a toilet support, a handle fitting, an easy to access shower and a separate technical room. The shower base is recessed into the floor, for ease of use. The chassis is lowered using the hydraulic system included, this enables for higher ground clearance when transporting, but a more accessible ramp angle when in situ. Thermally insulated from direct heat gain, 50mm walls and 120mm single piece roof with gutters. Four passive air vents, double glazed Upvc openable window. Full strip white Led to ceiling, full width door Led with day/night sensor on main door/ramp. Support stands to each corner. Safety trip switched fuse board with either 10A or 15A supply. 20m freshwater and waste water heavy duty hose pipes included. Galvanised Al-ok trailer chassis EC certified with override braking, jockey wheel and breakaway cable. All road lighting -high quality Led to high and low level.

The Scanvogn 420 4+1 accessible toilet trailer has dedicated use for:

Outdoor large events such as festivals, weddings and markets.
Construction sites where staff with lack of mobility need access to an onsite toilet and shower.
People going to caravan or holiday parks that require mobility accessible toilets.
Carers who need a mobility accessible toilet available when going on day trips to public parks, beaches, etc.
NDIS facilities or specified disability service facilities.

All Scanvogn cabins towable by all rated vehicles of 2000kg capacity, are also customisable so if the standard solution isn’t quite what you need, you can make your portable bathroom exactly the way you want it. There is a range of additional options that can be included. A customised unit can be designed to offer several additional support functions, so that even people who need a lot of help will feel safe. In addition to a toilet support, a hand fitting and a ramp, you can order a customised cabin that also comes with a shower trolley, ceiling hoist and built on a height-adjustable chassis for easier access.

This trailer system when properly maintained will have a possible lifespan of 20 years.
Registration accepted in all states, with stamp duty exemption for personal or business use.

Toilet Type

This accessible model comes equipped with the water-saving Jets Vacuum System

Easy To Use & Clean

The trailer is connected to a standard towbar and can be set up and ready in a few minutes. This makes it possible to move the trailer from place to place quickly and efficiently without any hassle. The trailer is made of clean and durable materials, and sleek minimalistic designs, saving time for cleaning and maintenance.

Ideal For

Scanvogn portable disability accessible shower & toilet trailers are ideal for a range of industries and applications such as:

Music Festivals
Catering & Hospitality Events
Field Day Events
Glamping Grounds
Horse & Country Events
Motor Racing
Construction & Demolition Sites
Exhibitions & Shows
Outdoor Events
Private Functions
Sporting Events

The trailers provide easily accessible, clean and hygienic ablution facilities for customers, guests and staff.

Manufacturers Website

Additional information

Weight	5 kg
Manufacturer	Scanvogn
Model Name	420 4+1 Accessible Toilet Trailer
Model Number	125618
Internal Dimensions	4096 x 2176 x 2100 mm
External Dimensions	4200 x 2280 x 2700 mm
Own Weight	1350 kg
Total Weight	2000 kg
Capacity	4+1 person
Facilities	Wall-mounted toilet, waste disposal, hand basin with hand fitting Lowered shower cabinet, floor drainage Toilet support, aluminium ramp (for wheel chair) Mirror 900 x 500 mm Extra wide door 922 mm, windows: 1 510 x 410 mm 4 towel holders, 2 coat hooks Technical compartment, electric ventilation 2 radiators 400 V – 16 A CEE inlet 30 L water heater LED light strip Electrical circuit panel
