Scanvogn – Pioneer Cabin Trailer 570 (5.7 x 2.28 x 2.9 m)

This pioneer cabin trailer is self sustained, with solar cells, gas, water and a drainage tank. Comes with a standard flushing toilet, shower, lockers and an office room. Can be upgraded to have a mini kitchen, utility room and extra shelves. For more information see the trailer info and more info tabs below. Plus GST
AL-KO CHASSIS – Using German AL-KO parts on all standardised chassis to ensure you one of the best trailer systems on the market. Rubber torsion-independent suspensions make a smoother ride with maximum protection of goods being carried.
VISABILITY – All external vehicle lights are high and low, high-quality LED sealed for high visibility whilst travelling.
BEST PROTECTION – Galvanising is carried out after the chassis has been mechanically machined so that all edges and bolt holes are also protected.
FULLY MOLDED CURVED ROOF – Molded roof with a smooth curvature to optimise strength and direct water/snow and dirt away from the centre of the roof to the gutter -front and rear.
GUTTER SYSTEM – Directional gutters along the sides to gutter at each gable to direct water and dirt away from users, doors and windows.
DURABLE PANELS – Using UV-stabilised bright white fibreglass which contains a high number of fibres for best strength and durability. Totally weatherproofed and the perfect base for vinyl wrapping.
EU – CERTIFIED – All our standard windows are gas-filled double glazing for extreme thermal efficiency, and screen boxes and lights are EC certified. Our wagons can therefore be driven legally throughout the EU and Au, in extreme heat and cold.
STRONG WALLS – All external walls are seam cut and placed so that the angles close tightly around the floor for maximum strength and tightness.
ENERGY-FRIENDLY LIGHT – Using daylight white LED light strips in all rooms, which gives you a comfortable white and energy-friendly light with a modern look.
SPECIAL COMPONENTS – We produce several of our own sub-components ourselves, so we can offer you higher quality at a reasonable price.
GUARANTEED SPARE PARTS – We have a large spare parts warehouse, where most parts can be shipped from day to day.
COMPACT LAMINATE – All our table tops are high-density compact laminate which will not rot or create mould. This makes them resistant to water and humidity & bacteria. Excellent for testing or catering rooms.
TOUCH-FREE FITTINGS – Option to choose touch-free fittings or toilet flush. (Specific to Covid-19 compliance) With durable/fully washable materials, so you spend as little time on cleaning and maintenance as possible.
SPACIOUS – With ceiling heights of 2100mm and bigger and widths from up to 2380mm, we pride ourselves on having the most spacious models.
TOWABILITY – Our trailer systems use lightweight low-tare strong chassis, combined with very lightweight panels, we know we have the lightest, most efficient mobile room system available. Overrun mechanical all-wheel drum braked, with breakaway safety cables and independent handbrake – there is no adjustment needed by the user.
ROI – All in all, with great resale values, this gives you the best business investment, easiest to manage, most sustainable fuel-saving mobile trailer system, on the market.

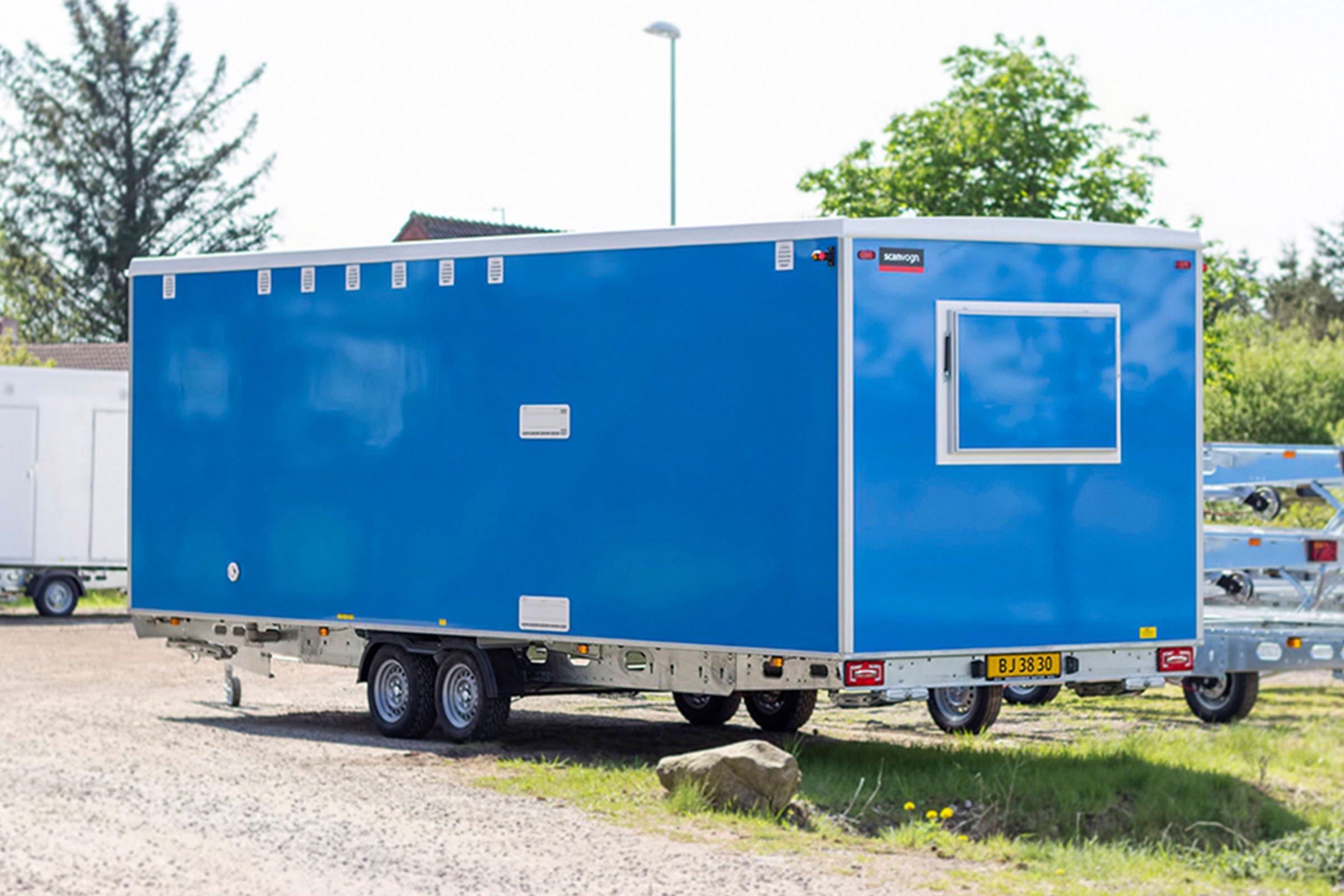

Pioneer Cabin Trailer 570

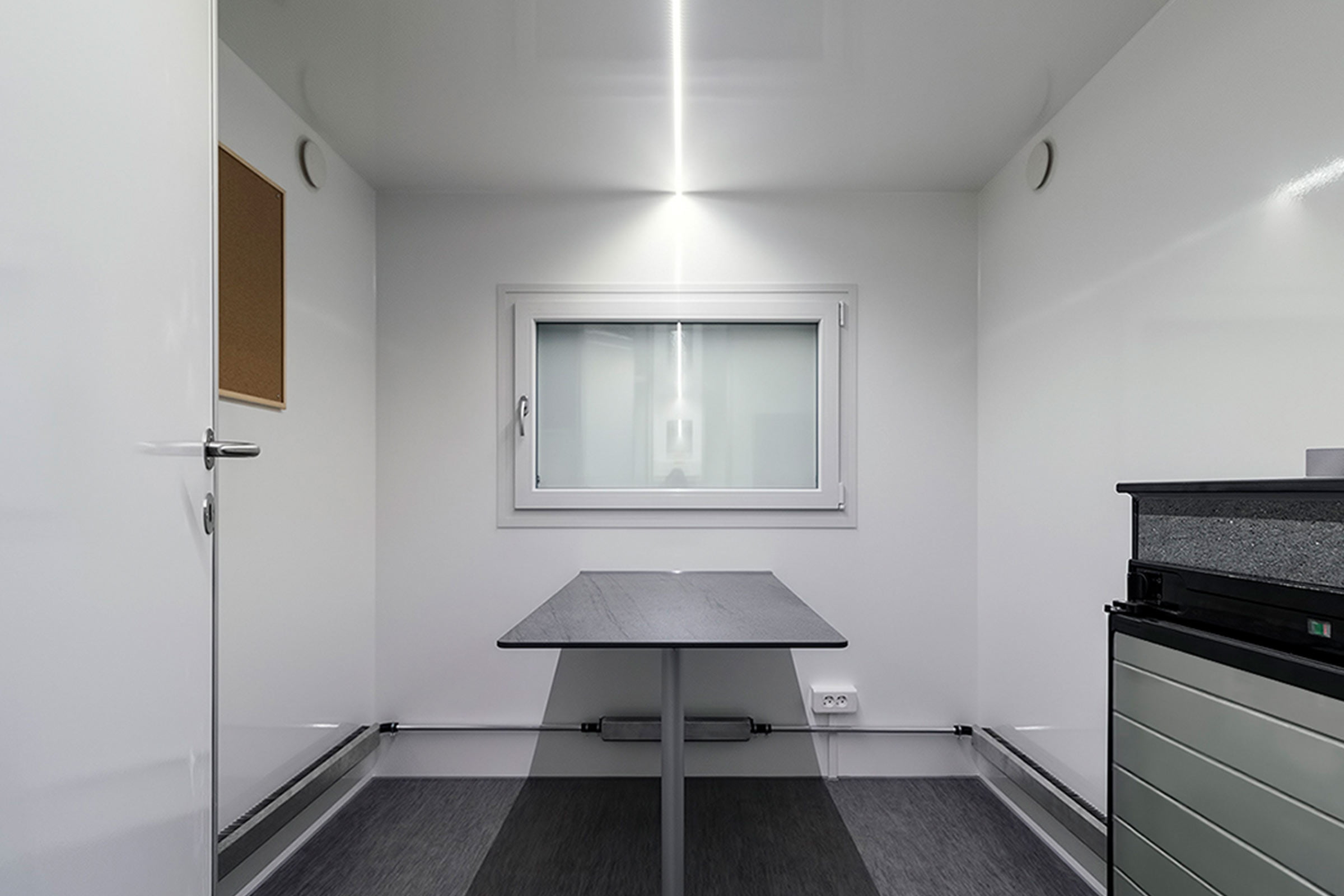

A fully self sufficient office or lunchroom for staff

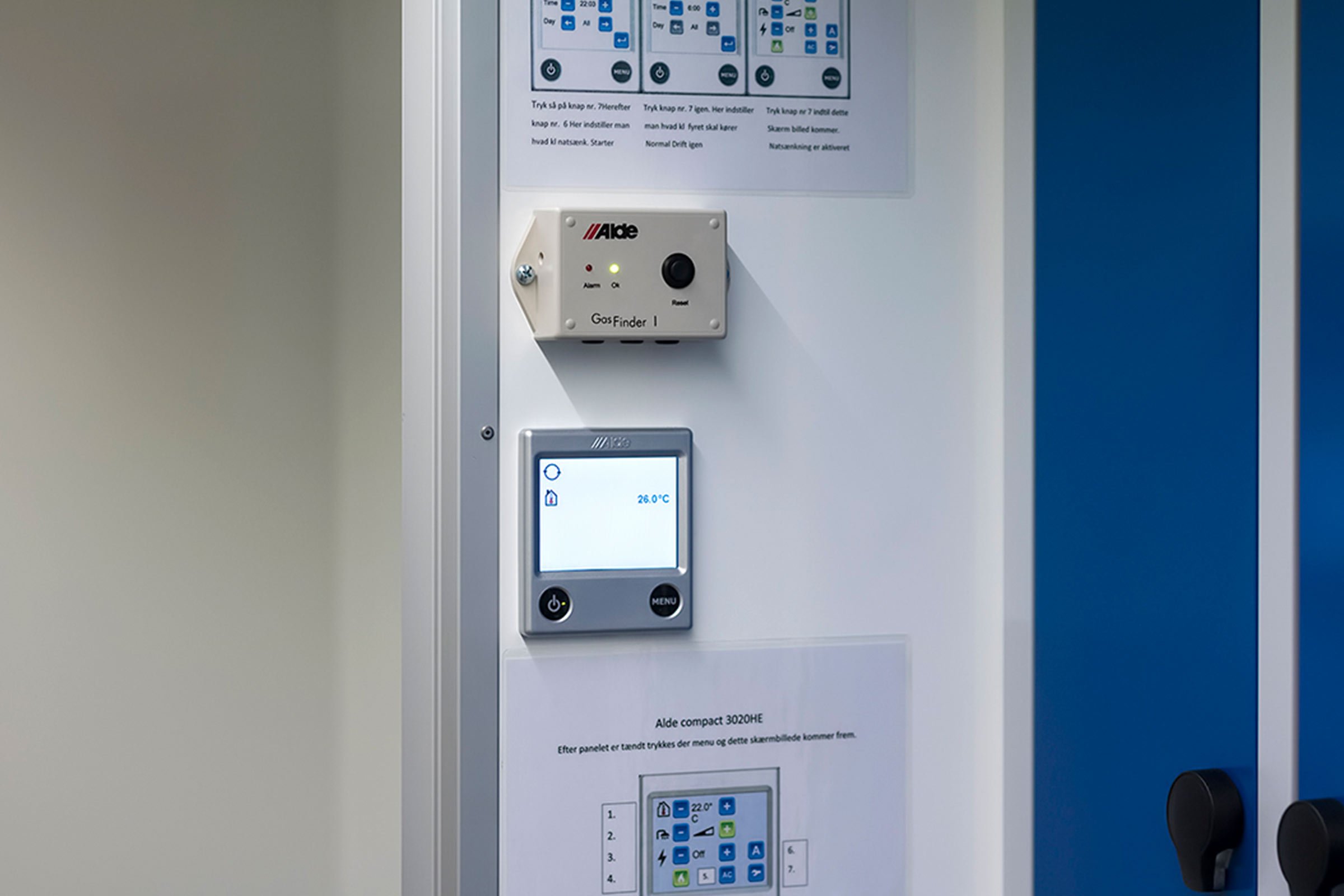

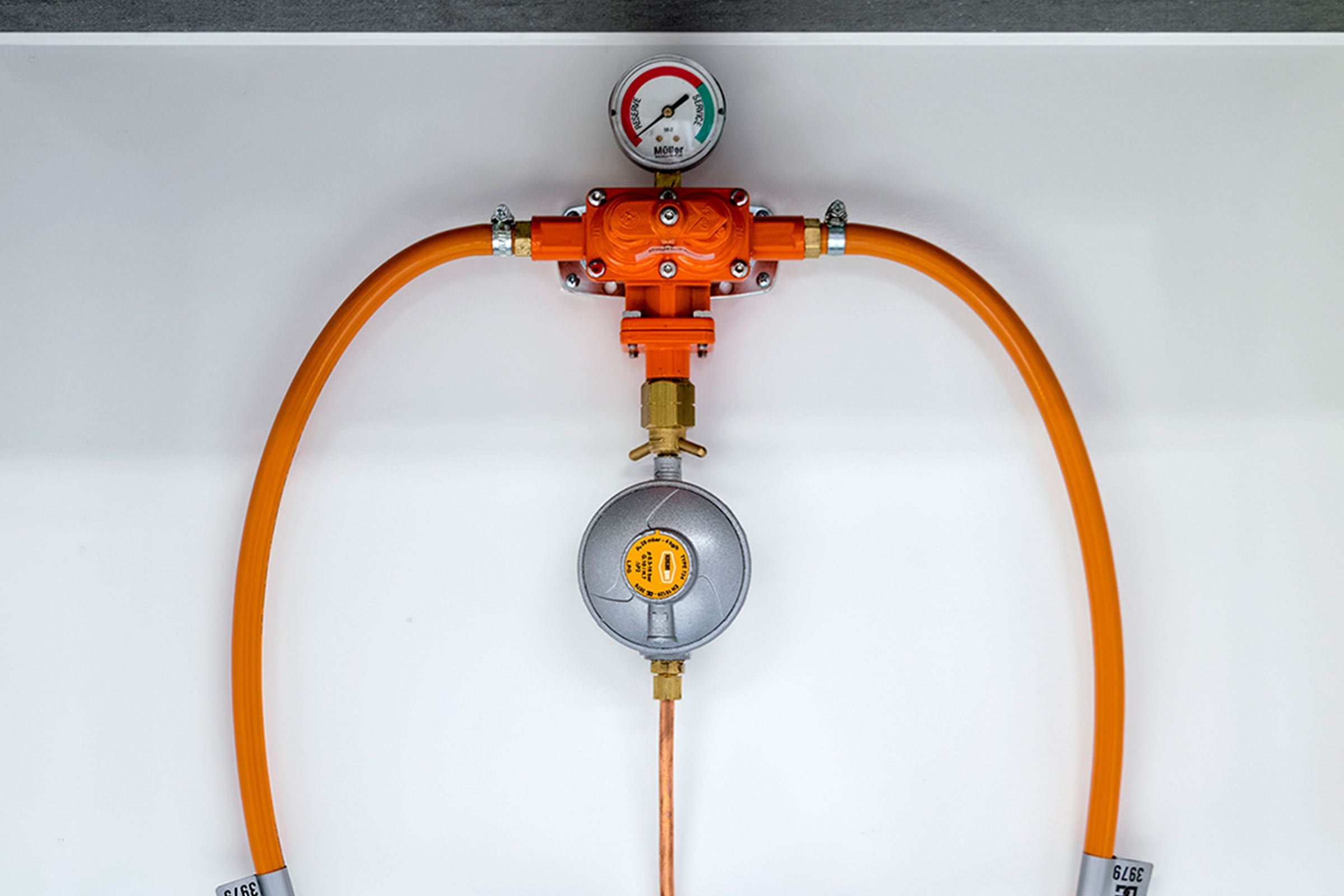

The 4 person pioneer cabin trailer is equipped with solar cells and gas, and a water and drainage tank. The cabin contains gas central heating and a gas fridge and works with both gas and electricity, so you can save on gas if connection to external power is available. You can also install a generator if you need more power than the sun can provide. You can upgrade the cabin with mini kitchen, utility room and extra shelves. All Scanvogn cabins are customisable so if the standard solution is not quite what you need,  you can make your portable bathroom exactly the way you want it. There is a range of additional options that can be included. These units have been specially designed for the construction industry to meet specific needs and requirements.

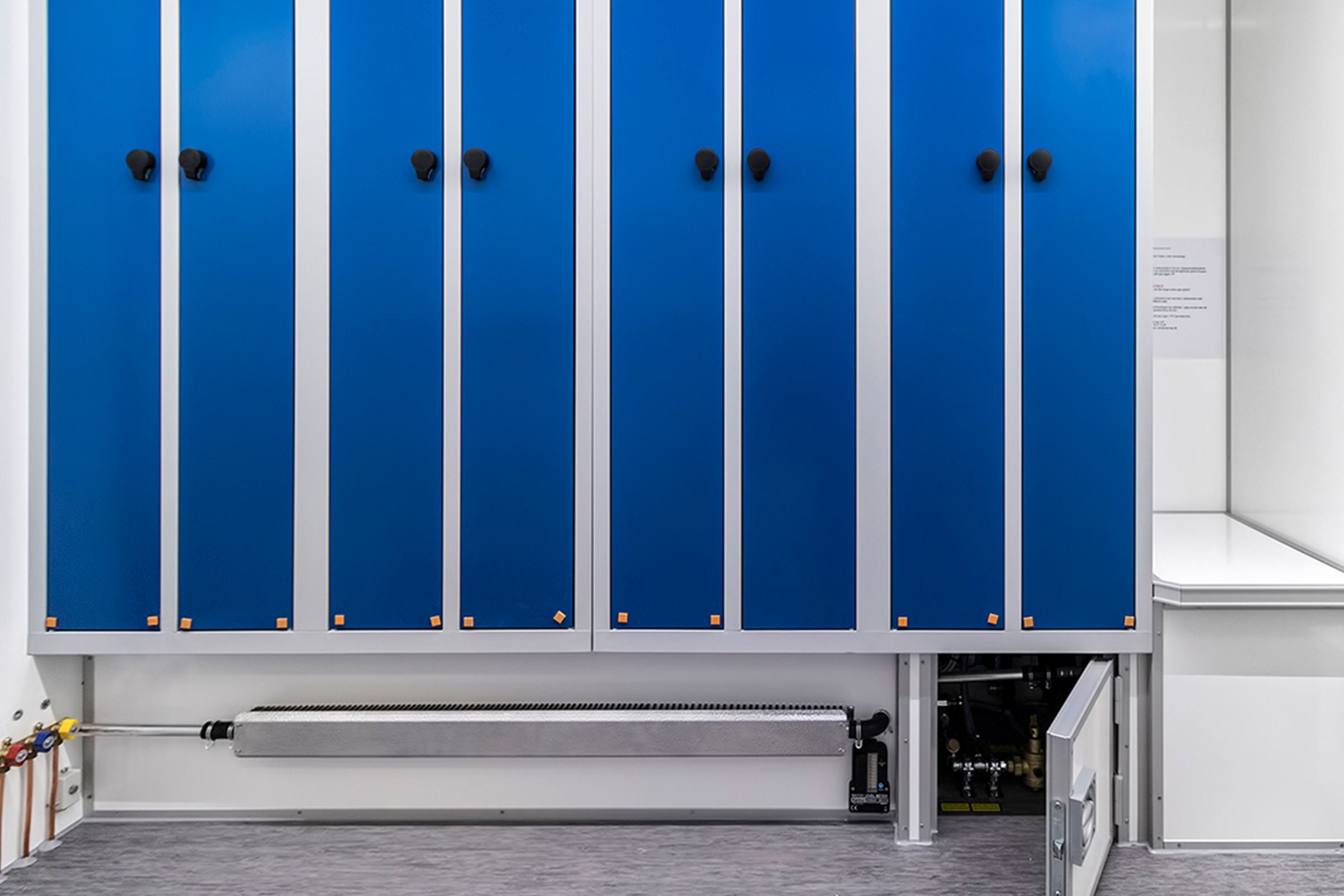

The 570 is the only standard sized pioneer unit offered in Australia as larger cabins will not fit in a shipping container. It is similar to the 570 office, staff & environmental cabins. In addition to the standard office cabins, the staff cabin comes with lockers for storage, and a shower.

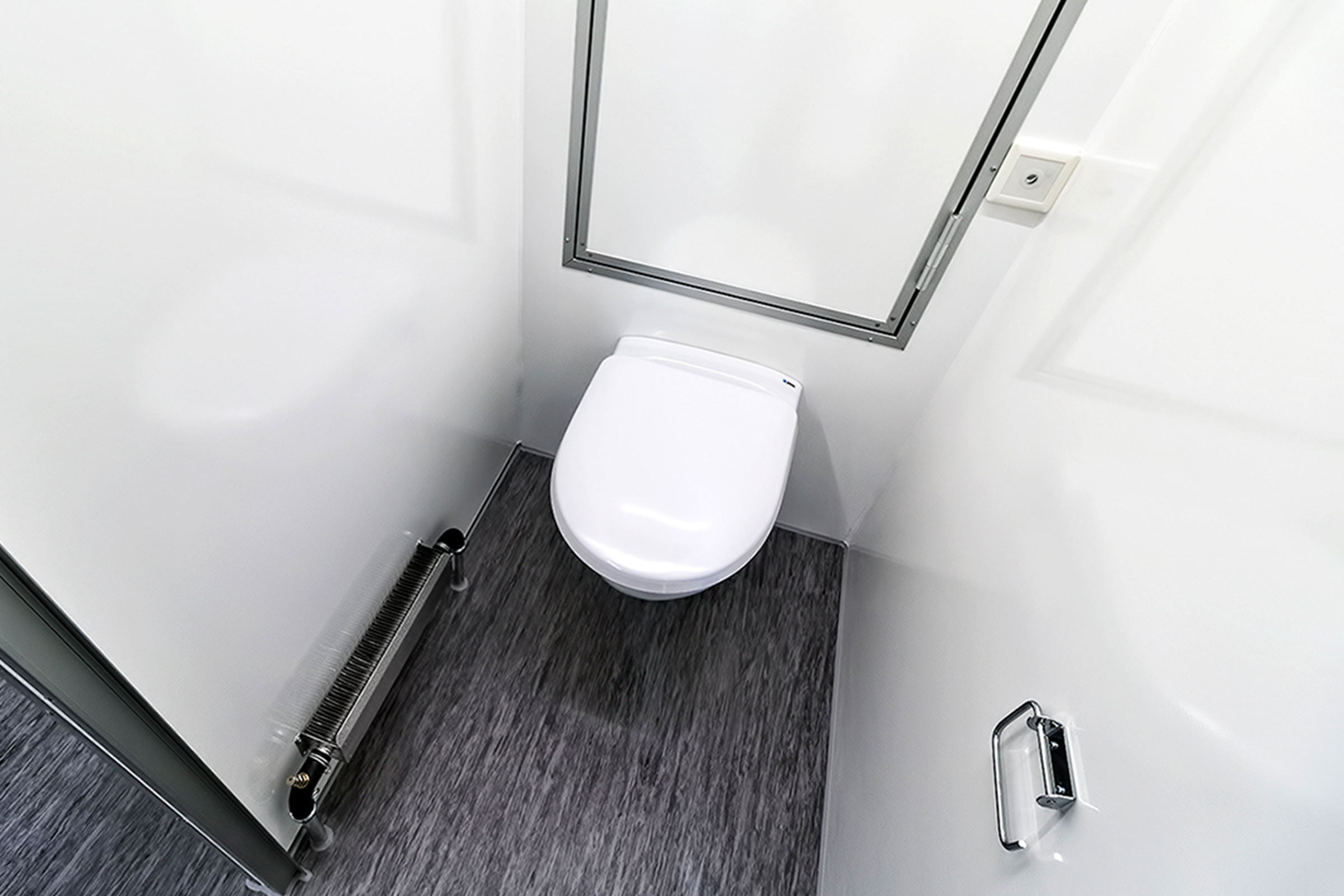

This model comes equipped with our standard flushing toilet waste disposal. For people who have a connection to external water and drainage on site, then this is the toilet solution for you. The toilet works like a normal toilet in the home (but with disposal for extra reliability) and therefore feels natural and comfortable. We supply the toilet in an upright or wall-mounted version, and with or without visible pipes. If the pipes are hidden, the cabin is built with a technical compartment, for easy servicing of the toilet. You can choose to change the toilet type to any of our 4 toilet types including Vacuum and combustion. Or you can choose to have your portable office without a toilet for additional space.

  • With toilet & grinder: $34, 897
  • With Vacuum Toilet: $56,303


The trailer is connected to a standard towbar and can be set up and ready in a few minutes. This makes it possible to move the unit from place to place quickly and efficiently without any hassle. The cabin is made of clean and durable materials, saving time for cleaning and maintenance.

Scanvogn portable cabin trailers are ideal for a range of industries and applications such as:

  • Music Festivals
  • Catering & Hospitality Events
  • Field Day Events
  • Glamping Grounds
  • Horse & Country Events
  • Motor Racing
  • Construction & Demolition Sites
  • Exhibitions & Shows
  • Outdoor Events
  • Private Functions
  • Sporting Events

The trailers provide easily accessible, clean and hygienic accommodation facilities for customers, guests and staff.

Check out more information on the manufacturers website.

Additional information

Weight5 kg


Model Name

4 Person Pioneer Unit with Alde gas central heating, toilet & grinder.

Model Number


Internal Diamensions

5596 x 2176 x 2100 mm

External Diamensions

5700 x 2280 x 2900 mm

Own Weight

1600 kg

Total Weight

2000 kg


4 people

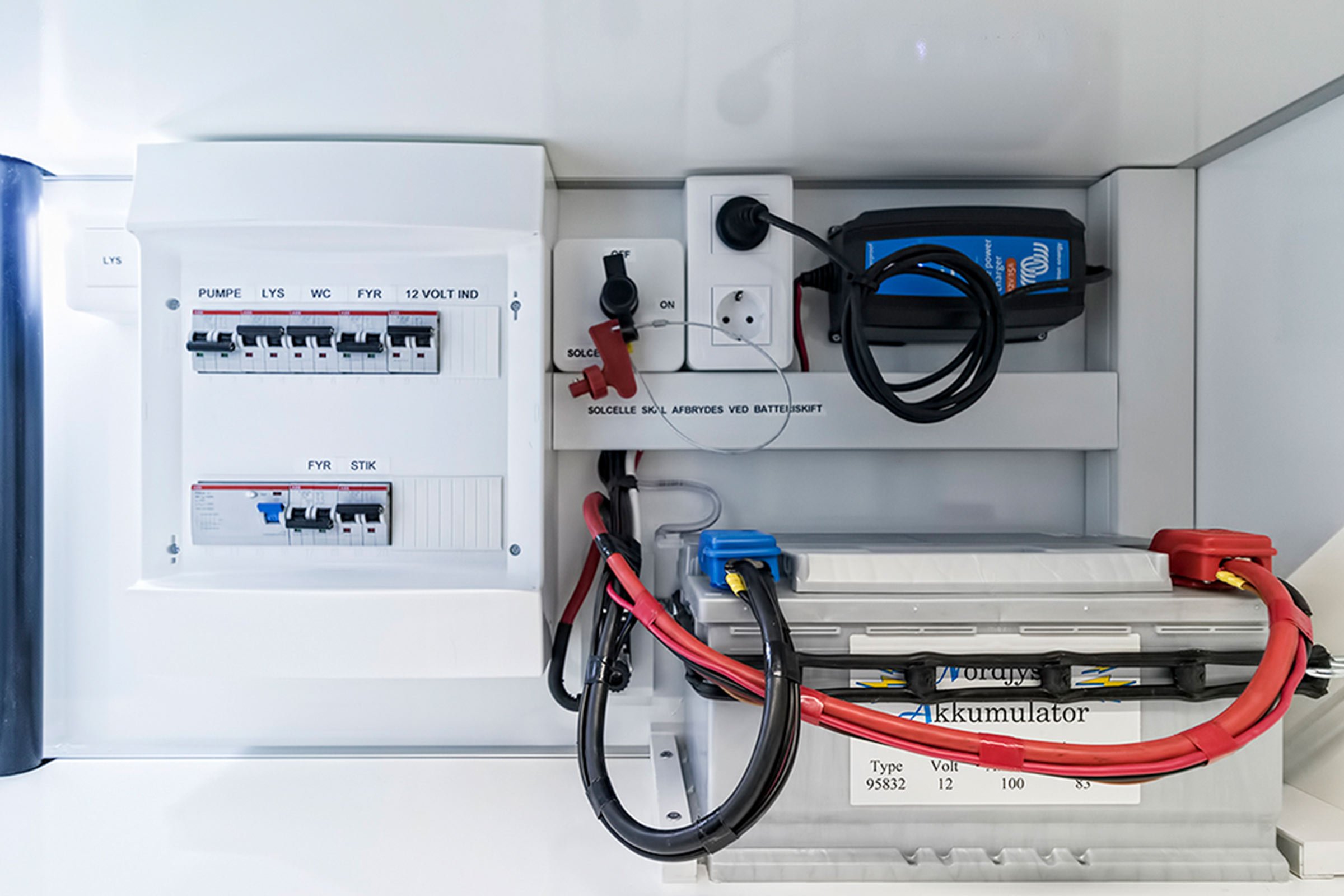

toilet, shower cabinet, hand basin. (Can upgrade to Jets vacuum toilet). Gas fridge, gas burner, space for 2 gas flasks Compact gas furnace, gas central heating Fixed table 1200 x 690 mm, 4 chairs 8 steel cupboards, 4 coat hooks Windows: 1 1245 x 825 mm, 510 x 410 mm Technical compartment, free standing steps Solar cells, battery, charger 160 L Water tank & drainage tank LED light strip Electrical circuit panel, tank level indicator
