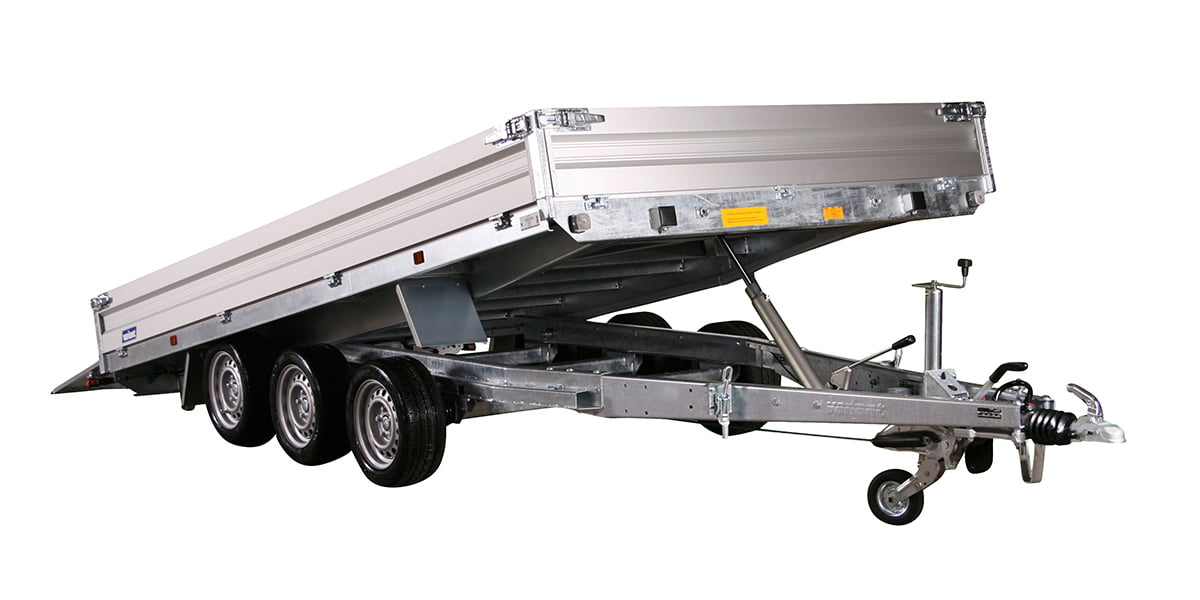

Variant Tri-Axle Universal Trailer 3543 UX 4.2m x 2.1m with removable sides and corner posts with tilt

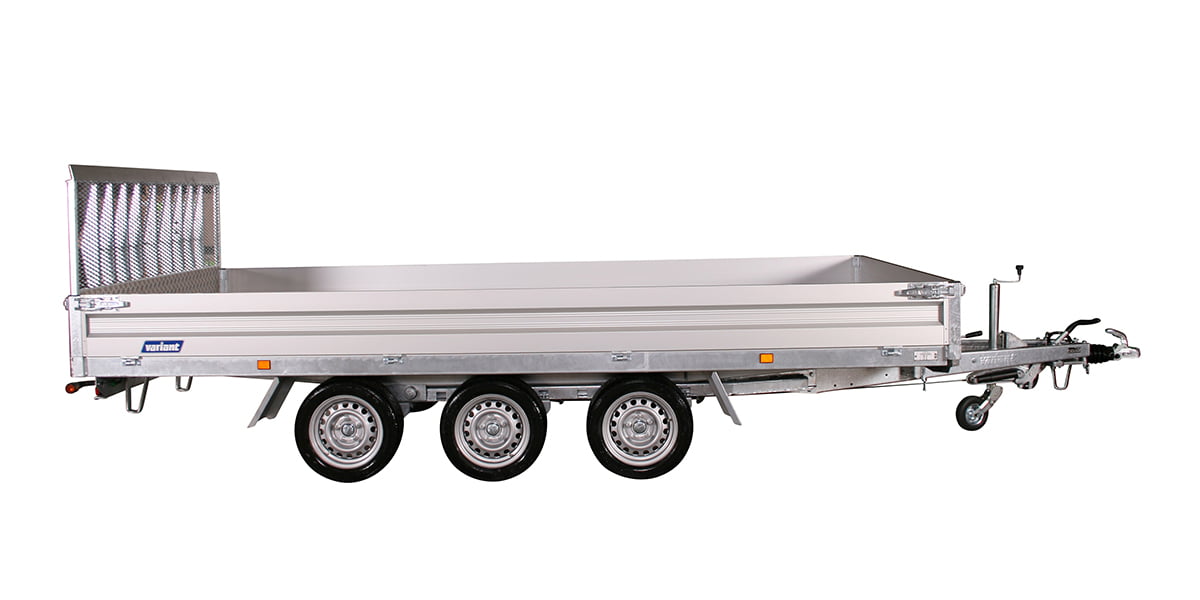

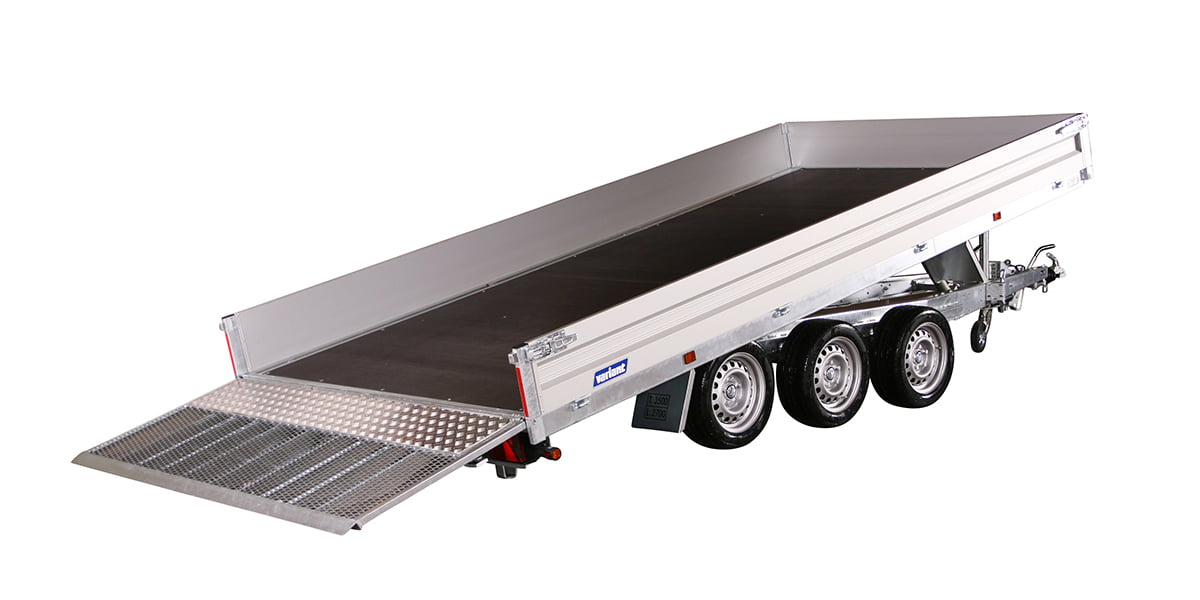

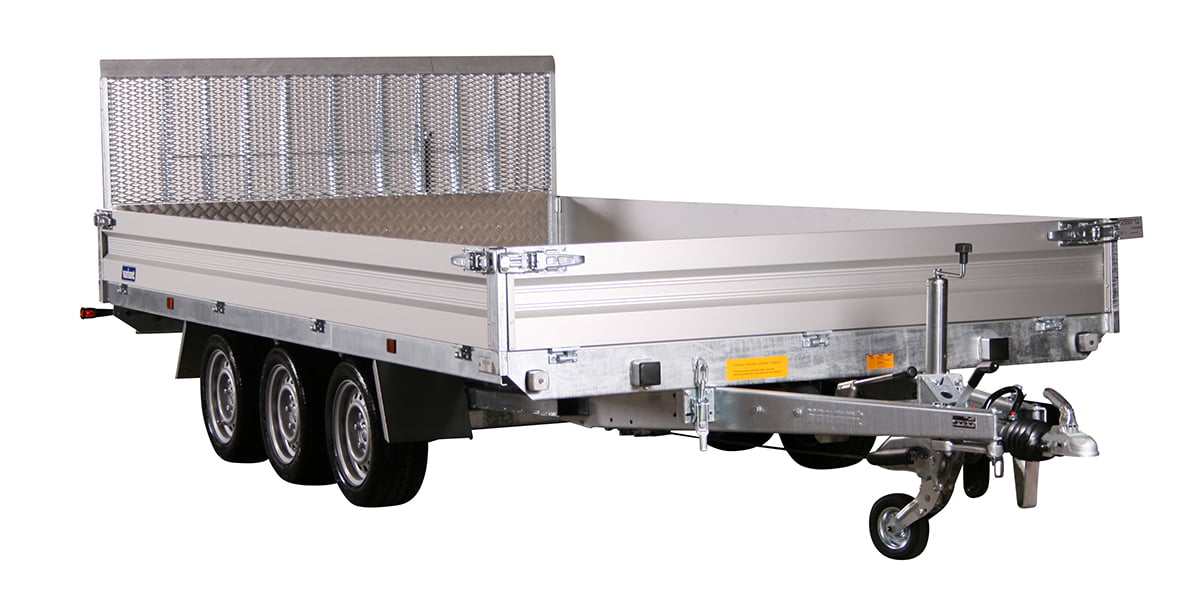

Variant Tri-Axle Universal Trailer 3543 UX 4.2m x 2.1m with removable sides and corner posts

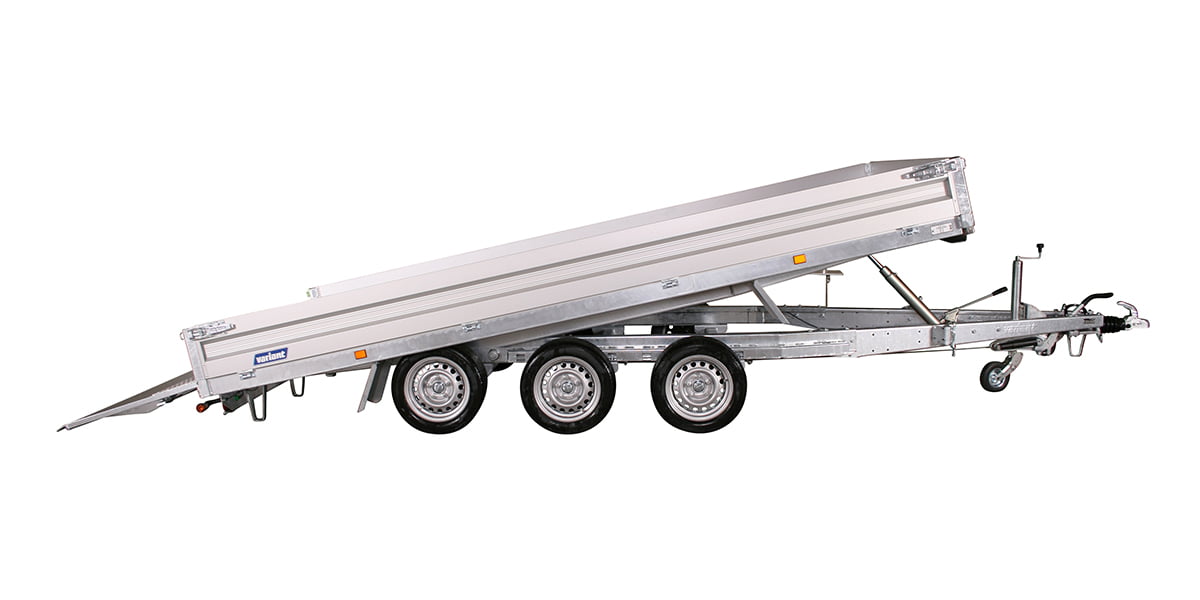

Variant Tri-Axle Universal Trailer 3543 UX 4.2m x 2.1m with removable sides and corner posts with tilt
Variant Tri-Axle Universal Trailer 3543 UX 4.2m x 2.1m with removable sides and corner posts with tilt

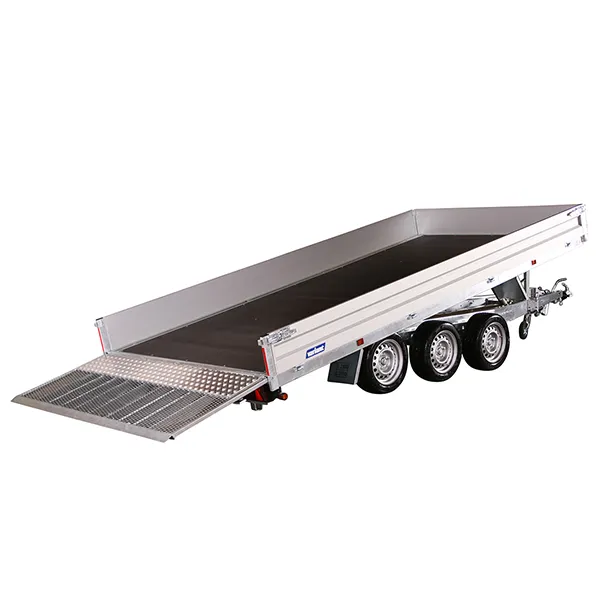

Tilting Flatbed Trailer suitable for machinery

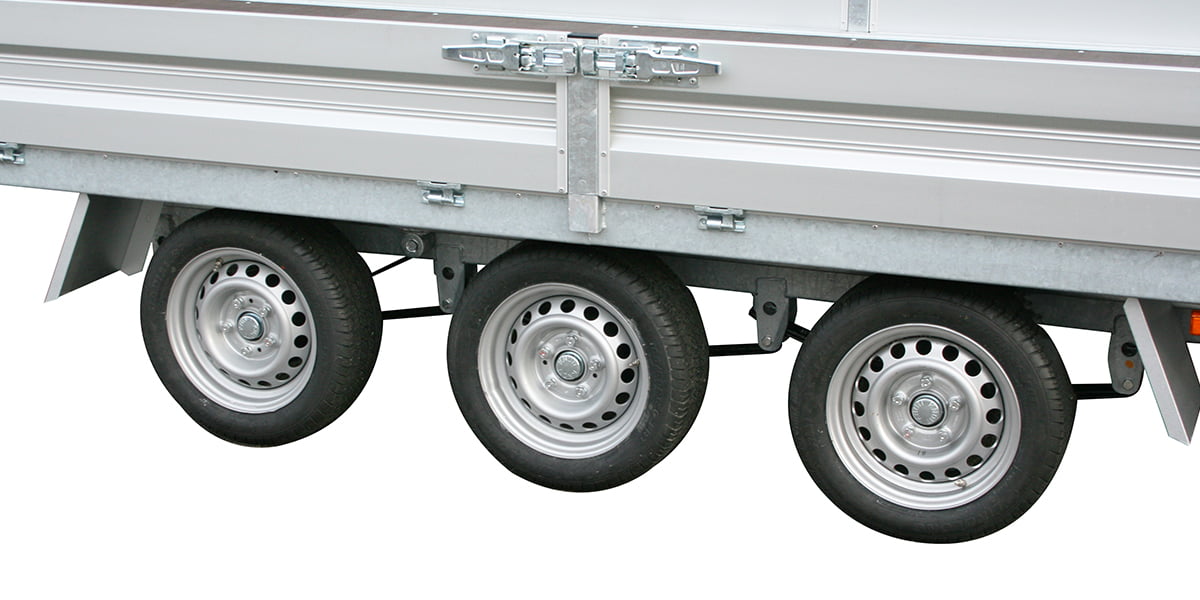

Triple axle with parabolic leaf springs

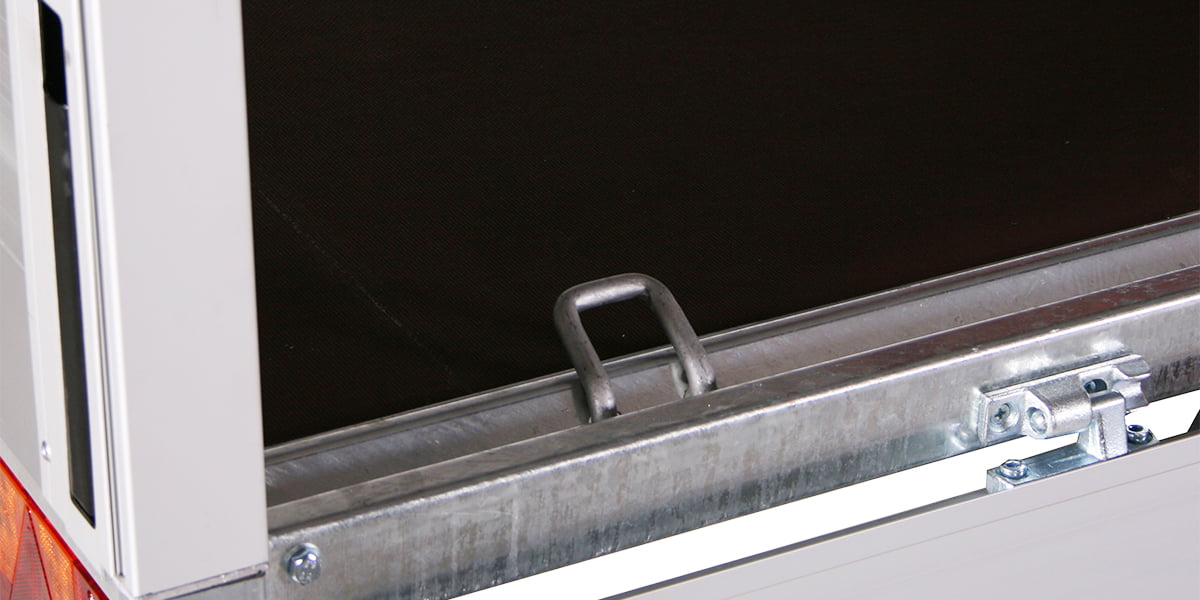

Integrated Tie-Down Points

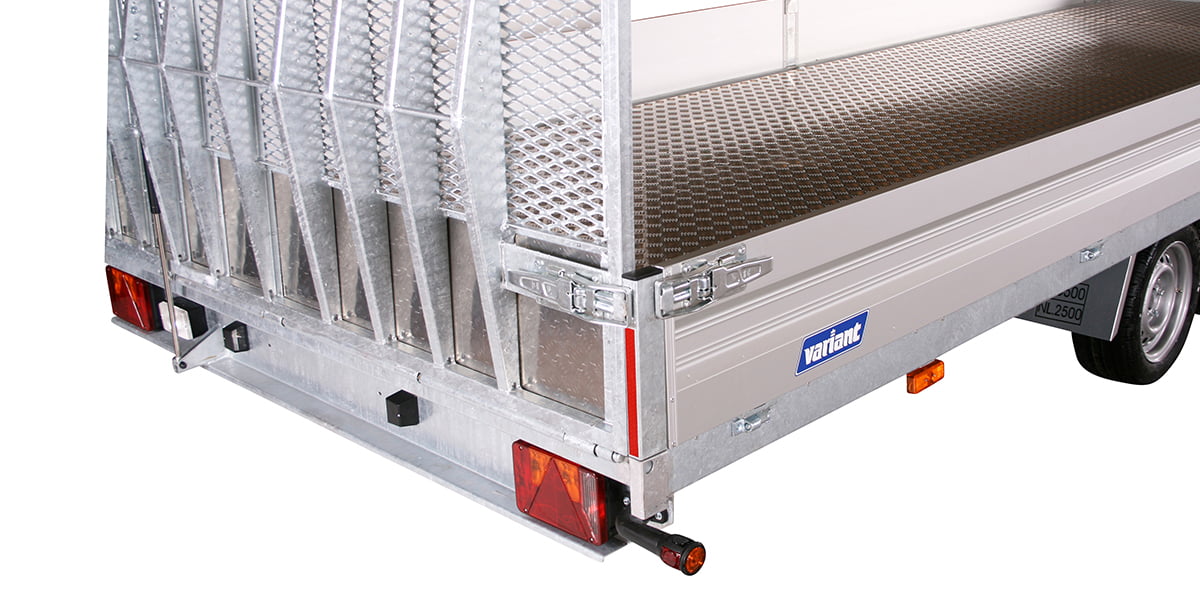

Rear Corner Posts are Removable

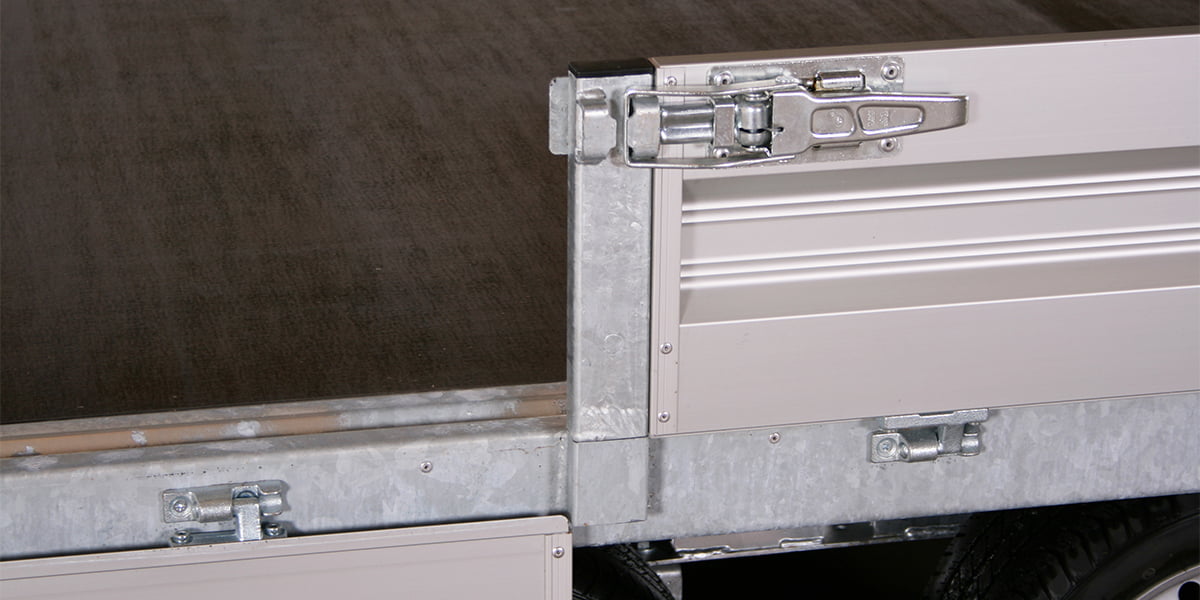

Removable Corner Post

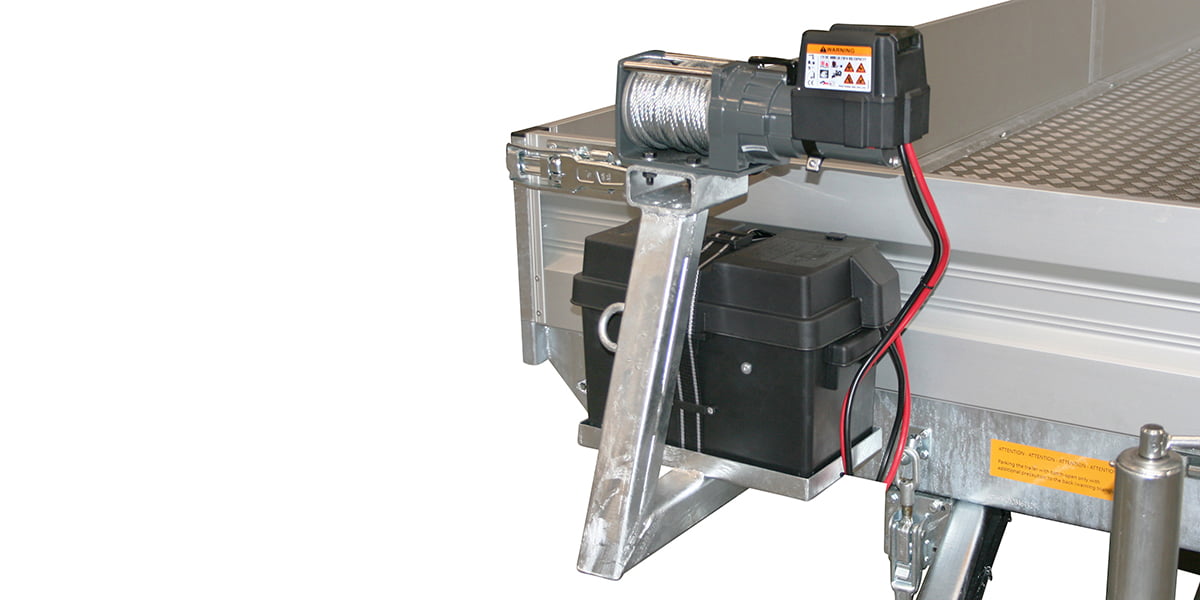

Optional Electric Winch and Battery

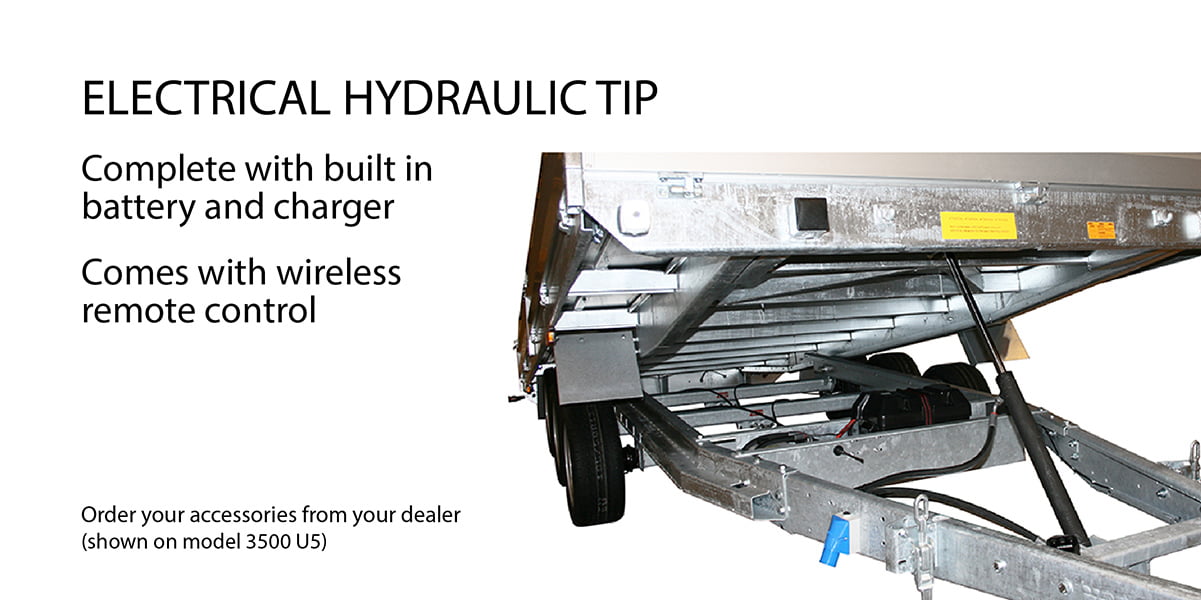

Optional Electric Hydraulic Tilt
Optional High Tarp
Aluminium Floor Option on Variant 3553 UX Tilting Flatbed Trailer

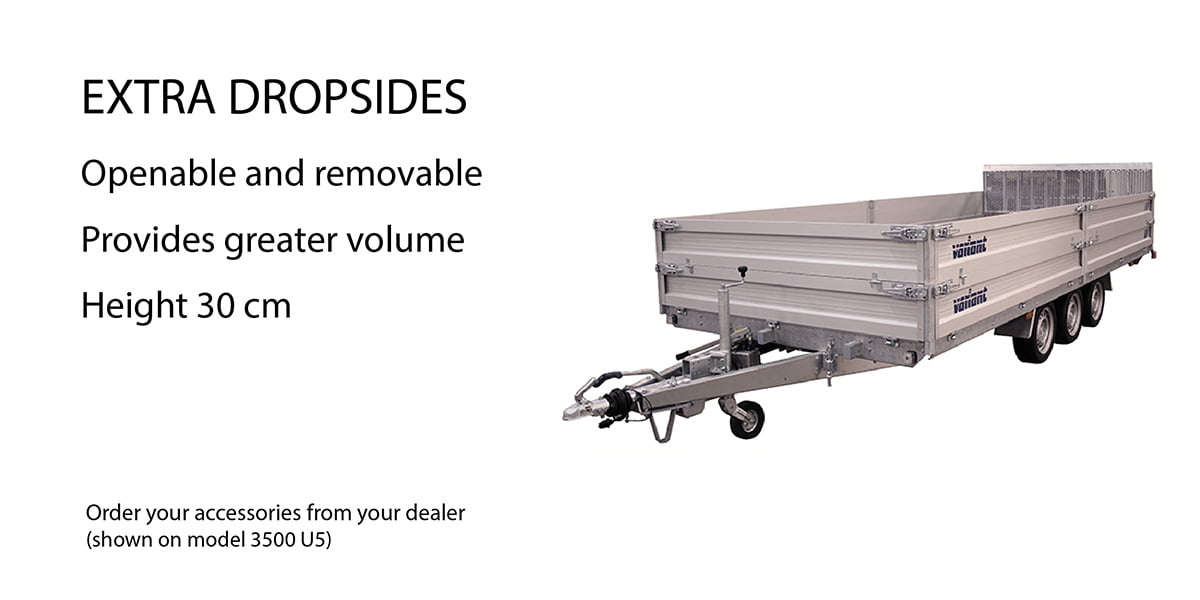

Additional dropsides on Variant 3553 UX Tilting Flatbed Trailer

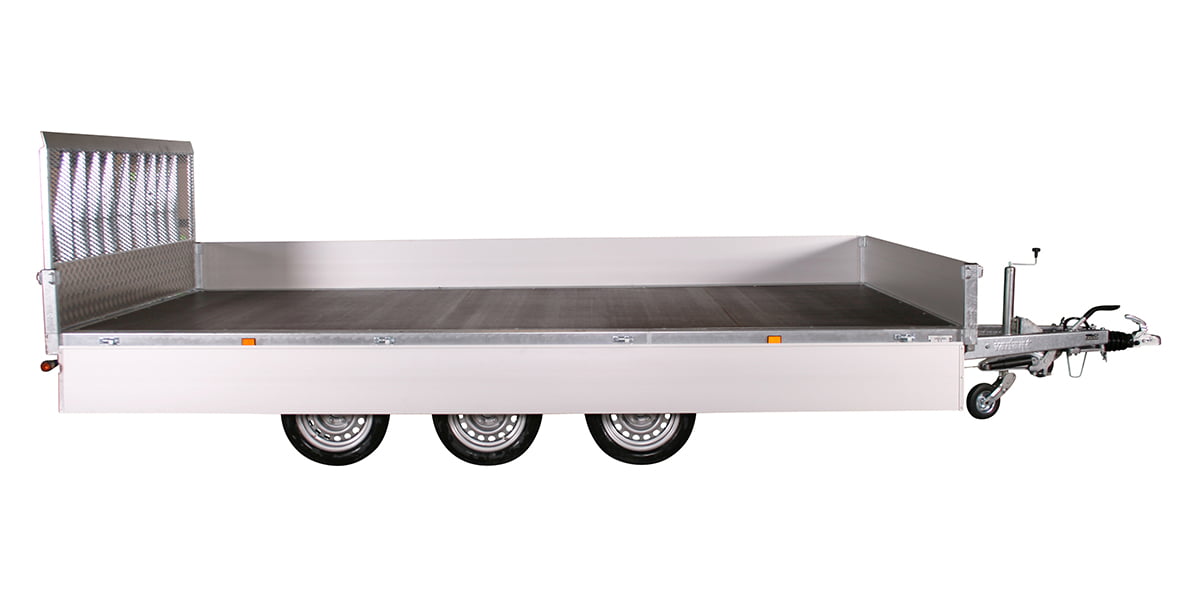

Universal Trailer 3543 UX – 4.2m x 2.1m – 3500kg Tri-Axle

$18,623.00

Brand New 2026 Pricing Released!

Explore our 2026 Variant and Scanvogn trailer models

NEW MAXI LOAD Universal tilt Trailer

The NEW Variant Universal UX trailers are part of the Maxi-Load series, feature a fully welded – bolted hot-dip galvanised chassis with extremely high strength, Parabolic leaf springs ensuring superb suspension and top-class driving characteristics, whilst carrying heavy loads. The total weight – 3500kg with payload up to 2528kg, three axles and Knott mechanical overrun braking.

See how much material you can load in this trailer by using our Trailer Load Calculator

Enquire About This Trailer
SKU: VAR/3543UX30 Categories: , , , , Tag:

Additional information

Manufacturer

Variant

Product Code

3543 UX

Series

Universal Series – Tilting Flatbed

Trailer Internal Size (LxWxH)

420x210x30 cm

Total Trailer Size (LxWxH)

573x220x159 cm

Trailer Tare Weight

972 kg

Trailer Weight (ATM)

3,500 kg

Trailer Payload

2528 kg

Trailer Loading Height

65 cm

Light Trailer Wheels

13", 5 Studs, 6 Wheels

Axles

3 Axles, With Brakes

Opening / removeable Sides

All 4 Sides

Side Material

Aluminium

Trailer Floor Material

Phenolic Plywood 18mm

Interior Tie Down Anchor Points

8 Hooks

Other Included Features

13 or 7 Pin Plug, Ball Coupling With Inbuilt Lock, Detachable Corner Posts, Gas Struts On Back Ramp, Nose Wheel With Tilt, Parabolic Leaf Springs, Powerful Rear Ramp 90cm

Tipping Type

Hydraulic Tip

Back Tip Angle

12 degrees

Optional Trailer Extras

See More Information

Trailer Size to Feet

18 x 7.1

Description

Optional Extras Available With This Model:

  • Additional 350mm Dropsides
  • 700mm Front Ladder Rack
  • Aluminium Floor
  • Toolbox mounted beneath the floor
  • Spare Wheel & Bracket (Mounted)
  • Electric Tilt with Wireless Remote Control
  • Manual Wire Winch
  • Electric Winch
  • Wheel Shock Absorbers
  • Black 13″ Compact Wheels
