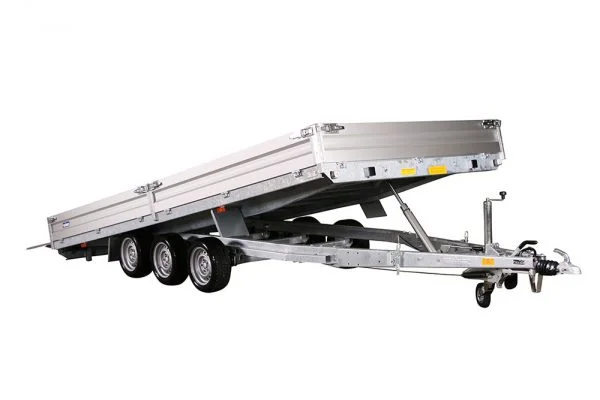

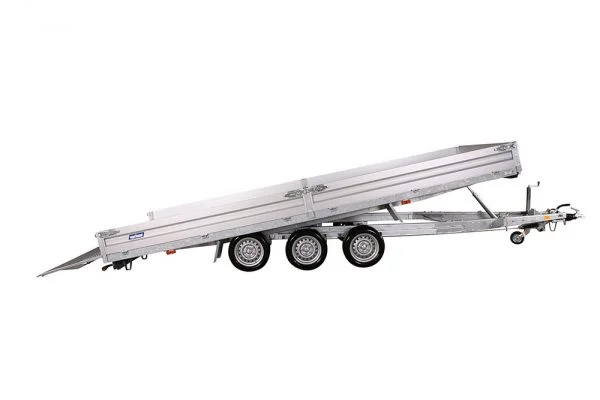

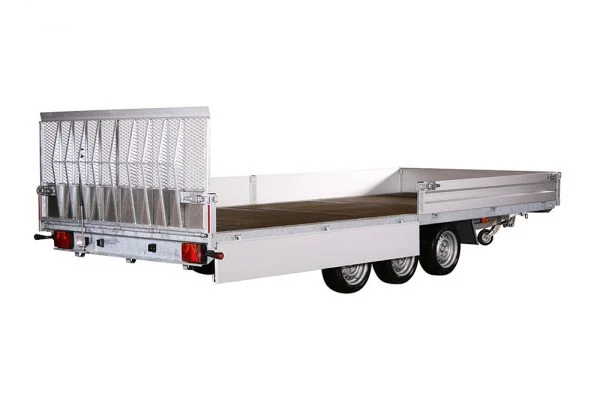

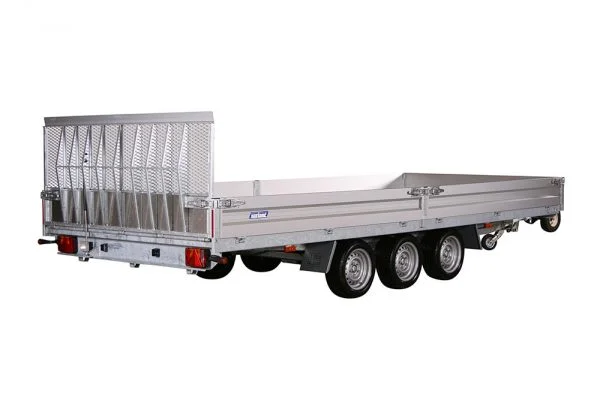

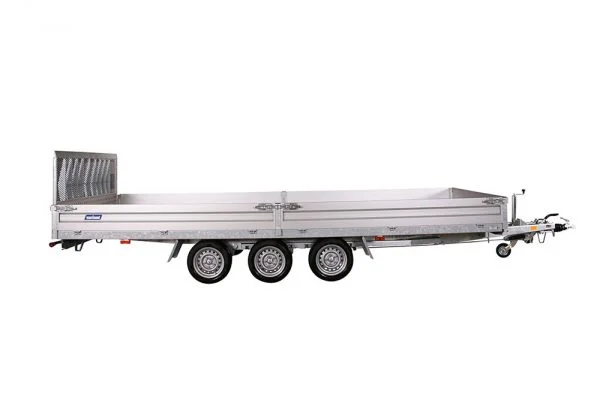

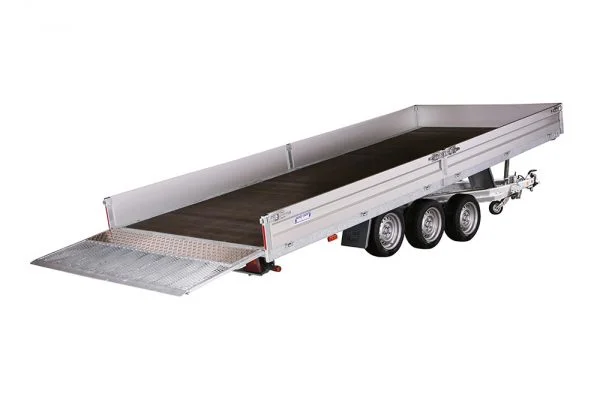

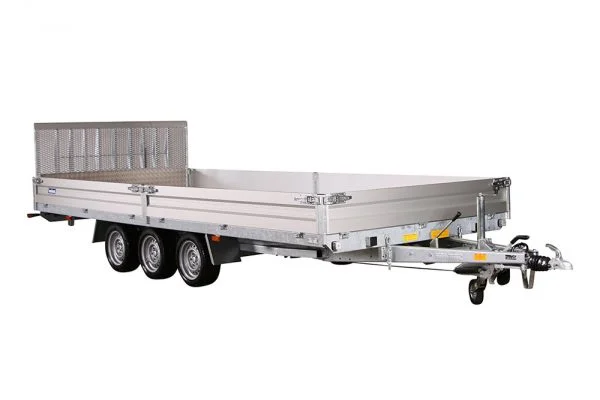

Universal Trailer 3500 U5 – 3,500Kg – 5.20 x 2.10m

$20,766.00

Tri-Axle tilt box trailer with tailgate ramp. 5m long box and 2,445kg payload capacity, perfect for transporting big industrial materials and drive on equipment. Galvanised steel chassis for durability and longevity. Wheels mounted underneath allowing all sides to be openable and removable for easy loading & unloading. three axles with mechanical overrun brakes.

As a Danish concept, Variant sets design standards in Australian trailer engineering quality, new sizing – return on your trailer investment. The resulting longevity of quality trailer components will continue delivering service for years to come. Flat bed trailers from 1.5m to 6.2m long, Weatherproof plywood or steel floor, from 1.4m to 2.5m wide. Low tare & low coupling weight, high strength – hot-dip galvanised chassis. Federally approved to RVSA 2023. German mechanical override braking, breakaway cable, auto-reverse, balanced centre of gravity load trailer. No need for electric brake controller. Suitable for companies with multiple trailer use, fleet and hire, mining, civil and trackside.

Our trailer yard is in Erina, Central Coast. We have customers in and also deliver to Sydney, Newcastle, New South Wales, Victoria, Queensland, Western Australia, Tasmania, Australian Capital Territory and Northern Territory.

Description

Universal Trailer 3500 U5

Variant Universal Tilt Trailer 3500 U5, Tri-Axle.

Only 3 axled European trailers certified up to 3.5 tonne in Australia!

  • More than 400,000 sold trailers are our guarantee of quality, safety and comfort.
  • Our chassis frames are hot dipped galvanised and with high demands on quality, safety and reliability – that’s why we develop the very strongest and sturdiest trailers you will find from Europe.
  • New rated Tubeless radials on all wheels.
  • Using either Knott rubber torsion suspension system or axle leaf spring systems for greater road stability.
  • With safety white reflectors to the front, amber reflectors to the side and red to the rear as standard.
  • Bright White safety reversal light.
  • Our Knott Braking system is of the mechanical overrun type – the hydraulically dampened overrun control device includes drum braking to all wheels, a dedicated handbrake and auto reverse mechanism.
  • TUV load securing system with lashing brackets integrated into the side edges.
  • Heavy profiled aluminium front, rear and side panels.
  • When choosing your trailer, tare weights are lower meaning greater payloads, smoother towing and overall reduced fuel consumption.
  • Our trailers are designed to get the job done in the right situation.
  • We deliver to business, government and private individuals, fleet and hire.
  • Extra weather treatments can be added to your trailer to increase protection against atmosphere and increase weather repellence



35cm double profile aluminium sides – fantastic business marketing/advertising panels. Rubber torsion independent suspension. Low tare -max payload.
Low coupling weight, balanced centre of gravity load trailer. Designed for towing not dragging your loads. Tie down brackets (built-in) -either side.
Full RVS approved with ADR approved mechanical overrun brakes and emergency breakaway cable – no electric control needed.
Two-year warranty, full-service support. Parts -spares available 24/7.



Optional Extras Available With This Model:

  • Extra alusides open up. 35 cm- Increasing trailer load with additional space.
  • High Tarp with Inside Framing 205cm- Increase enclosed trailer space with strong welded frame and transverse bracing.
  • Cage 60cm– Trailer Cage, strong quality, front and rear accessibility.
  • Aluminium Floor- Increase trailer life and provide a non-slip flooring.
  • Eltip including battery and charger- Hydraulic Electric tilt.
  • Removable Manual Winch- Towing capcity 900Kg
  • Wireless remote control of removable electric winch- Towing capcity up to 1814Kg.
  • LED light kit incl. control box- Trailer light replacement kit.



For additional trailer information, see the “Specifications” section above, or the Variant Trailers website.

Variant trailers are designed and manufactured in Denmark with maximum quality and strength, sometimes the trailer for sale may not be one of the trailers in stock. We pride ourselves with the finest of quality & crafted galvanised trailers for sale, that will suit your needs with designs to meet your trailer requirements. When searching Google or Bing- trailers for sale, think robust, tough, capacity, weight, ease of use and towability, for maximum return on your investment. Contact us to order your trailer now!

Additional information

Weight 5 kg
Manufacturer

Variant

Product Code

3500 U5

Series

Auto-Transporters, Commercial Box Trailers, Tipper Trailers, Universal Series

Internal Dimensions (LxWxH)

520x210x30 cm

Total Dimensions (LxWxH)

670x220x159cm

Tare Weight

1,055 kg

Total Weight (ATM)

3,500 kg

Payload Capacity

2,445 kg

Loading Height

63 cm

Wheels

13", 5 Studs, 6 Wheels

Axles

3 Axles, With Brakes

Opening / Detachable Sides

All 4 Sides

Side Material

Aluminium

Floor Material

Phenolic Plywood 18mm

Interior Tie Down Anchor Points

8 Hooks

Other Included Features

13 or 7 Pin Plug, Gas Struts On Back Ramp, Jockey Wheel, Removable Corner Posts, Strong Tailgate Ramp 90cm

Tip Type

Hydraulic Tip

Back Tip Angle

11 degrees

Optional Extras

Aluminium Floor Material, Cage Grill Sides 60cm, Electric Tip including Battery & Charger, Electric Winch With Wire, Extra Height Opening Steel Sides 30cm, High Tarp with Inside Framing 210 cm, LED Lights Kit with Control Box, Ramp Stiffener, Removable Winch Braket, Winch With Wire, Wireless Remote Control for Electric Winch

Rough Size In Feet

17×7
